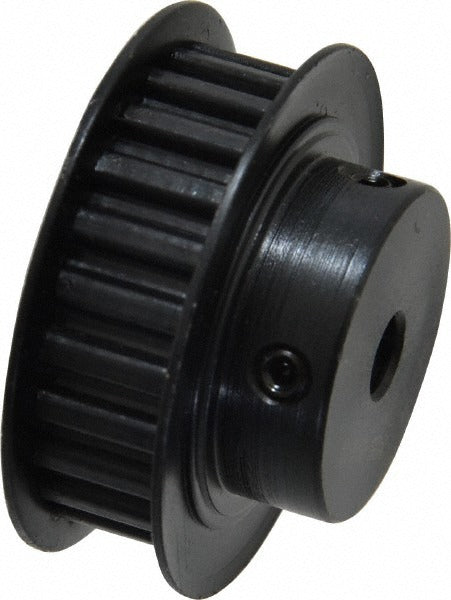

Value Collection 24XL0376FSFB1/4 Timing Belt Pulley

Product Description

The VALUE COLLECTION 24XL0376FSFB1/4 is a 24-tooth timing belt pulley designed for synchronous power transmission applications. With a 1/4-inch bore and a 1.508-inch outside diameter, it mates with XL-series timing belts in light- to medium-duty drive systems. The pitch diameter measures 1.528 inches, which determines the effective drive ratio when paired with a matching pulley and belt. Constructed from steel cast iron, this pulley delivers the rigidity needed to maintain precise tooth engagement under load. It is a direct component in motor-to-shaft drive trains found in industrial equipment, conveyor systems, and mechanical assemblies.

This pulley is suited for use in applications requiring XL-profile timing belts with a 3/8-inch belt width. Typical installations include light industrial machinery, CNC equipment auxiliaries, and automated equipment drives where accurate indexing or speed ratios are required. It is sized for a 1/4-inch shaft bore, making it compatible with small motor output shafts and driven shaft assemblies commonly found in benchtop and production-floor equipment.

Key Features

• 24-tooth XL-series profile for accurate synchronous power transmission
• 1/4-inch inside bore fits standard small-diameter motor and driven shafts
• 1.508-inch outside diameter and 1.528-inch pitch diameter for defined drive ratio calculation
• Accepts 3/8-inch wide XL-profile timing belts
• Steel cast iron construction for rigidity and wear resistance under continuous load

Compatibility

Designed for use with XL-series timing belts with a 3/8-inch belt width. No specific equipment model compatibility was provided in the product data; verify bore size, belt profile, and pulley center distance against your drive system specifications before installation.

Installation Notes

Installation is typically performed by a mechanical technician or maintenance professional. Disconnect and lock out all power to the drive system before removing or installing any pulley. Ensure the shaft is clean and free of burrs before pressing or sliding the pulley into position, and verify pulley alignment with a straightedge or dial indicator to prevent premature belt wear. Follow the equipment manufacturer's recommended belt tensioning procedure for XL-series drives.
