Value Collection 24XL025-6FA-1/4 Timing Belt Pulley 24T

Product Description

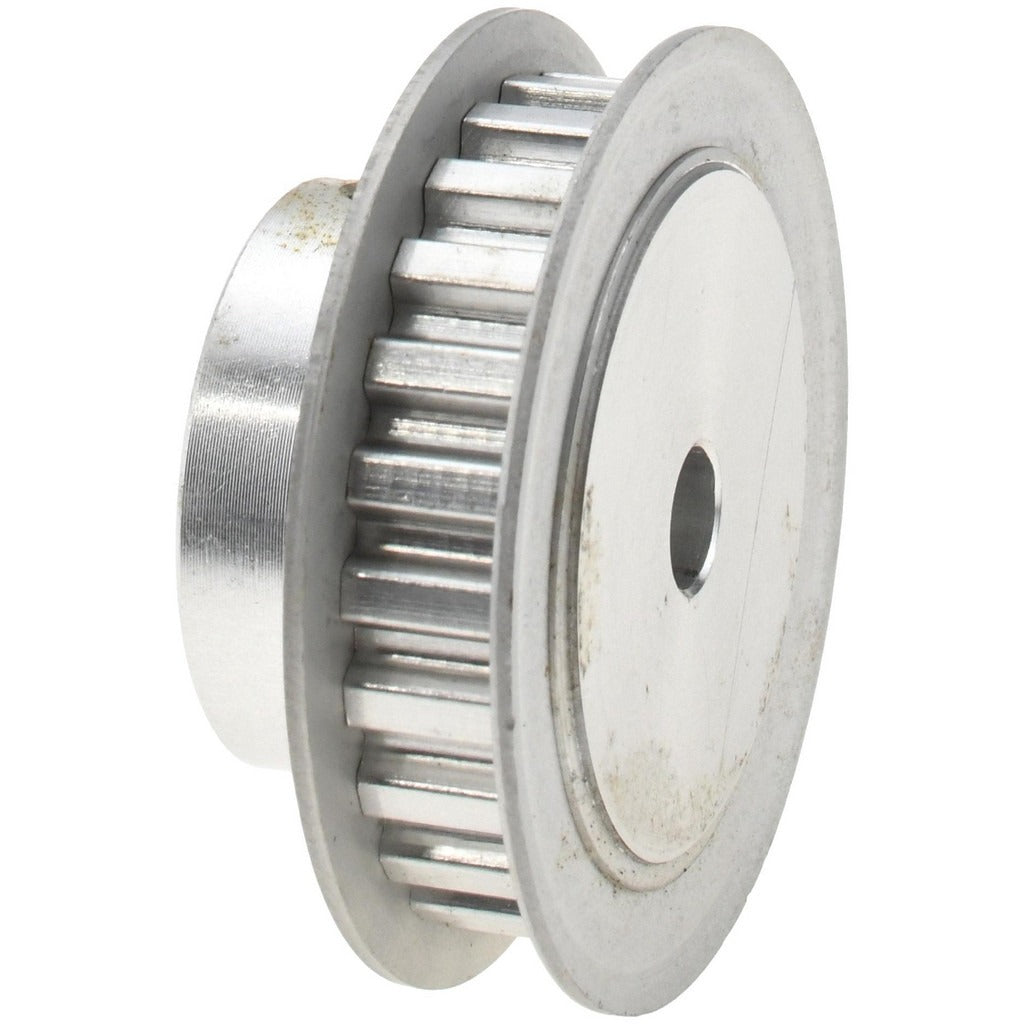

The VALUE COLLECTION 24XL025-6FA-1/4 is a hub flange timing belt pulley designed for use in precision motion-control and power-transmission applications. Machined from aluminum, it features 24 teeth and accepts a 1/4-inch wide XL-series timing belt. The bore measures 1/4 inch inside diameter, with a 1.508-inch outside diameter and a 1.528-inch pitch diameter. The face width is 0.438 inches. This pulley is typically installed by mechanical technicians, millwrights, and automation service professionals working on conveyors, indexing equipment, and light-duty drive systems.

This pulley suits residential and commercial equipment that relies on synchronous belt drives for accurate speed and position control. Common applications include small conveyor systems, CNC machine axes, packaging equipment, and HVAC blower assemblies using toothed-belt drives. The hub flange design helps keep the belt tracking properly on the pulley face, reducing the risk of belt walk during operation. It is suited for light to moderate torque loads typical of aluminum-frame drive systems.

Key Features

• 24-tooth XL-series profile for synchronous belt engagement
• 1/4-inch bore accommodates standard small-shaft drive configurations
• Hub flange construction supports belt retention and alignment
• Aluminum construction keeps rotating weight low and resists corrosion
• 1.528-inch pitch diameter for predictable speed-ratio calculations
• 0.438-inch face width matched to 1/4-inch belt width

Compatibility

Designed as an OEM-style replacement or direct-fit component for drive assemblies using XL-series synchronous timing belts with a 1/4-inch belt width and a 1/4-inch bore shaft.

Installation Notes

Installation is performed by qualified mechanical technicians or millwrights. Before servicing any drive system, de-energize the equipment and lock out the power source in accordance with applicable LOTO procedures. Ensure the shaft and bore are clean and free of burrs before pressing or sliding the pulley onto the shaft. Verify belt tension and alignment after installation to prevent premature wear on both the belt and pulley teeth.
