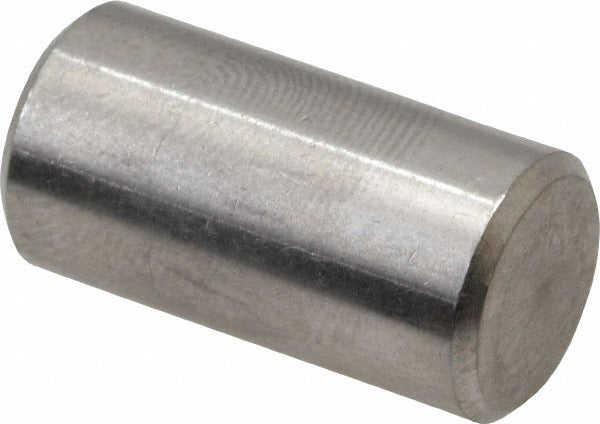

Value Collection 245253PS Dowel Pin 3/8x3/4 SS316

Product Description

The VALUE COLLECTION 245253PS is a precision dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. It measures 3/8 inch in diameter and 3/4 inch in overall length, conforming to ASME B18.8.2 dimensional standards. Both ends are beveled to ease insertion during assembly. The tight diameter tolerance of 0.0002 inch makes this pin suited for close-tolerance alignment and locating applications where consistency across multiple assemblies is critical. Machinists, tool and die technicians, and precision fabricators rely on this pin type for fixture building, jig construction, and component alignment in production and maintenance environments.

This dowel pin is appropriate for use in machine tool fixtures, precision jigs, molds, and alignment applications where corrosion resistance is a requirement. Grade 316 stainless steel provides improved resistance to chlorides and aggressive environments compared to standard 18-8 grades, making it a practical choice for food processing equipment, marine applications, medical device assembly, and chemical processing environments. The bright finish ensures dimensional consistency without added coating thickness that could affect fit.

Key Features

• Grade 316 stainless steel construction for superior corrosion resistance
• Diameter tolerance of 0.0002 inch for precise locating and alignment
• Beveled ends on both sides to facilitate clean, guided insertion
• Conforms to ASME B18.8.2 fastener standard
• Bright, uncoated finish maintains nominal dimensions without coating buildup

Compatibility

Designed as a standard ASME B18.8.2 precision dowel pin for use in any application requiring a 3/8 inch diameter, 3/4 inch length stainless steel locating pin.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed holes using an arbor press or mallet with a brass drift to avoid surface damage. Power down and de-energize any machinery before servicing fixtures or assemblies that incorporate dowel pins. Verify hole diameter and finish match the pin tolerance class prior to installation to prevent galling, especially with stainless steel components. Follow applicable machine safety and lockout/tagout procedures during installation and removal.
