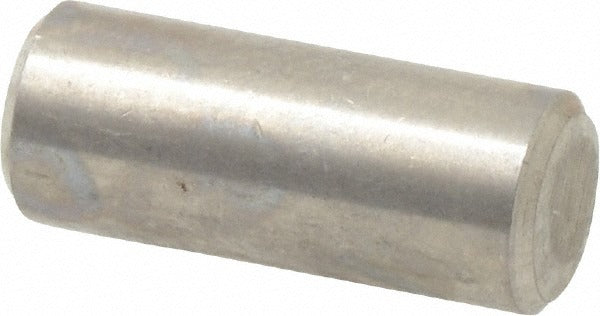

Value Collection 245160PS Dowel Pin 1/4x5/8 SS316

Product Description

The VALUE COLLECTION 245160PS is a precision dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. At 1/4 inch in diameter and 5/8 inch in overall length, this pin is produced to ASME B18.8.2 standards with a diameter tolerance of 0.0002 inches, ensuring tight, repeatable alignment in precision assemblies. The beveled end aids in press-fit insertion and reduces the risk of galling or misalignment during installation. This pin is well-suited for machinists, tool-and-die technicians, maintenance mechanics, and fabricators working in environments where corrosion resistance and dimensional accuracy are both required.

This dowel pin is commonly used in jigs, fixtures, dies, and machine components where precise part-to-part alignment is critical. Grade 316 stainless steel offers enhanced resistance to chlorides and corrosive media compared to standard 304-grade fasteners, making it appropriate for food processing, marine, pharmaceutical, and chemical processing environments. The bright finish indicates no additional coating, which preserves close dimensional tolerances right off the shelf.

Key Features

• Manufactured to ASME B18.8.2 precision dowel pin standards
• Grade 316 stainless steel for superior corrosion resistance in harsh or wet environments
• Diameter tolerance of 0.0002 inches for tight-fit alignment applications
• Beveled end design for controlled press-fit insertion
• Bright, uncoated finish preserves dimensional integrity without added coating thickness
• 1/4 inch diameter by 5/8 inch overall length

Compatibility

Designed as an OEM-style precision alignment pin for use in machine fixtures, jigs, dies, and assemblies requiring ASME B18.8.2 compliant dowel pins in 1/4 inch diameter sizing.

Installation Notes

Dowel pins are typically installed by machinists or maintenance mechanics using an arbor press or appropriate driving tool — never strike directly with a hammer without a driver to avoid deforming the pin or damaging the hole. Ensure the receiving hole is reamed to the correct tolerance before installation. Disconnect or de-energize any machinery before installing or removing dowel pins in powered assemblies. Follow applicable safety and machinery standards for your industry when working with press-fit components.
