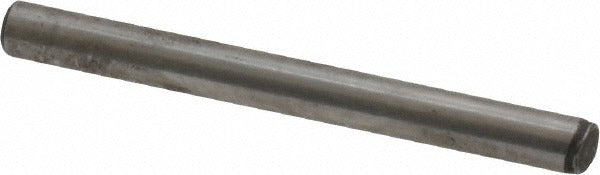

Value Collection 241070PR Precision Dowel Pin 3/32x1 in Grade 8

Product Description

The VALUE COLLECTION 241070PR is a precision dowel pin designed for accurate alignment and location of mating components in mechanical assemblies. Manufactured from Grade 8 alloy steel and hardened to 50-58 HRC, this pin delivers the rigidity and wear resistance required in demanding production and maintenance environments. It measures 3/32 inches in diameter and 1 inch in overall length, with a diameter tolerance of plus or minus 0.0002 inches for precise fit. One end is beveled for ease of insertion and the other is rounded. Installation is performed by machinists, toolmakers, and maintenance technicians working on jigs, fixtures, dies, and machine components.

This dowel pin is suited for use in precision fixturing, die sets, machine tool alignment, and general industrial assembly applications where repeatable location is critical. The tight diameter tolerance makes it appropriate for light-press and slip-fit hole conditions. It is sold individually per package with a minimum order quantity of 100 pieces, making it suitable for production-volume procurement or maintenance inventory stocking.

Key Features

• Grade 8 alloy steel construction hardened to 50-58 HRC for strength and wear resistance
• Diameter tolerance of 0.0002 inches for precise, repeatable fit
• One beveled end and one rounded end for controlled, guided insertion
• Breaking strength of 1,800 pounds measured in double shear
• Conforms to ASME B18.8.2 fastener standard
• Compact 3/32 inch diameter x 1 inch length suits tight-clearance assembly locations

Compatibility

Designed as an OEM-style precision locating pin for use in jigs, fixtures, dies, and mechanical assemblies requiring close-tolerance dowel fits per ASME B18.8.2.

Installation Notes

Precision dowel pins are installed by machinists and maintenance technicians using an arbor press or similar controlled-force press tool — never driven with a hammer, which can damage the hole or deform the pin. Verify hole diameter and finish before installation to ensure the specified fit condition is achieved. De-energize and lock out all machinery before performing any alignment or pin replacement work on live equipment.
