Value Collection 241028PR Precision Dowel Pin 1/16x1 in Grade 8

Product Description

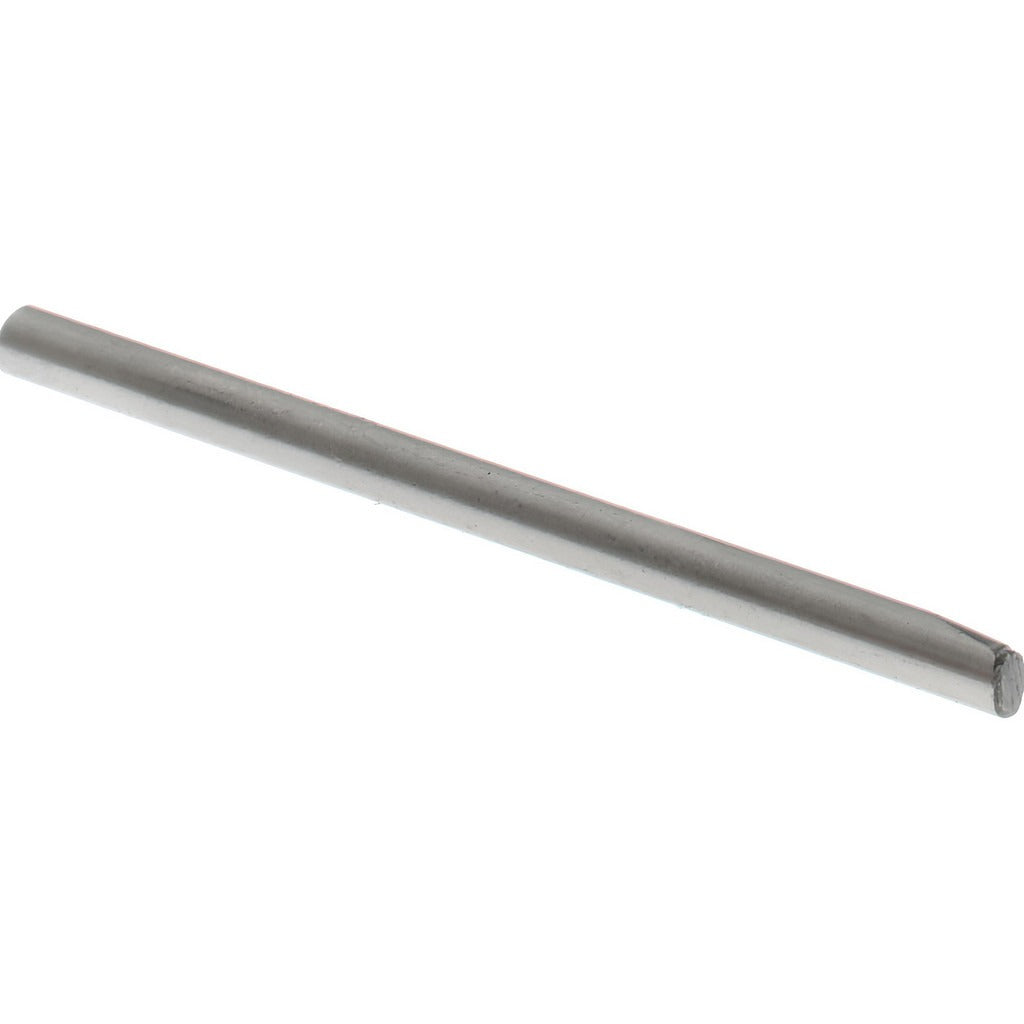

The VALUE COLLECTION 241028PR is a precision dowel pin used to locate, align, and secure components in close-tolerance mechanical assemblies. Manufactured from Grade 8 alloy steel, the pin measures 1/16 inch in diameter and 1 inch in overall length. It carries a Rockwell hardness of 50-58 HRC, giving it the wear resistance and shear strength required in demanding fixture, die, and jig applications. The asymmetric end configuration — one beveled end and one rounded end — allows for controlled insertion and precise seating. This pin is manufactured to ASME B18.8.2 standards, ensuring consistent dimensional tolerances for repeatable fitment in precision-machined holes.

This dowel pin is suited for use in machine shops, tool and die operations, and general precision manufacturing environments. The tight diameter tolerance of 0.0002 inches supports press-fit and slip-fit hole configurations in ferrous and non-ferrous assemblies. Typical applications include component registration in molds, fixtures, and mechanical subassemblies where positional accuracy is critical. This SKU ships as a single pin; minimum order quantity is 100 units.

Key Features

• Grade 8 alloy steel construction with 50-58 HRC hardness for high shear resistance
• Diameter tolerance of 0.0002 inches for close-tolerance press-fit and slip-fit applications
• One beveled end and one rounded end for controlled insertion and precise seating
• 800 lbf double-shear breaking strength
• Manufactured to ASME B18.8.2 dimensional standards
• Compact 1/16 x 1 inch form factor for small-bore precision assemblies

Compatibility

Designed as an OEM-style precision locating pin for close-tolerance mechanical assemblies requiring ASME B18.8.2 compliant 1/16 inch diameter dowel pins.

Installation Notes

Installation is typically performed by machinists or mechanical assemblers using a press or mallet with a properly sized drift punch. Verify that the receiving hole is reamed or drilled to the correct tolerance before installation to avoid galling or damage to the pin or bore. Do not force an oversized pin into an undersized hole. Inspect mating components for burrs and clean holes before pressing the pin to final depth.
