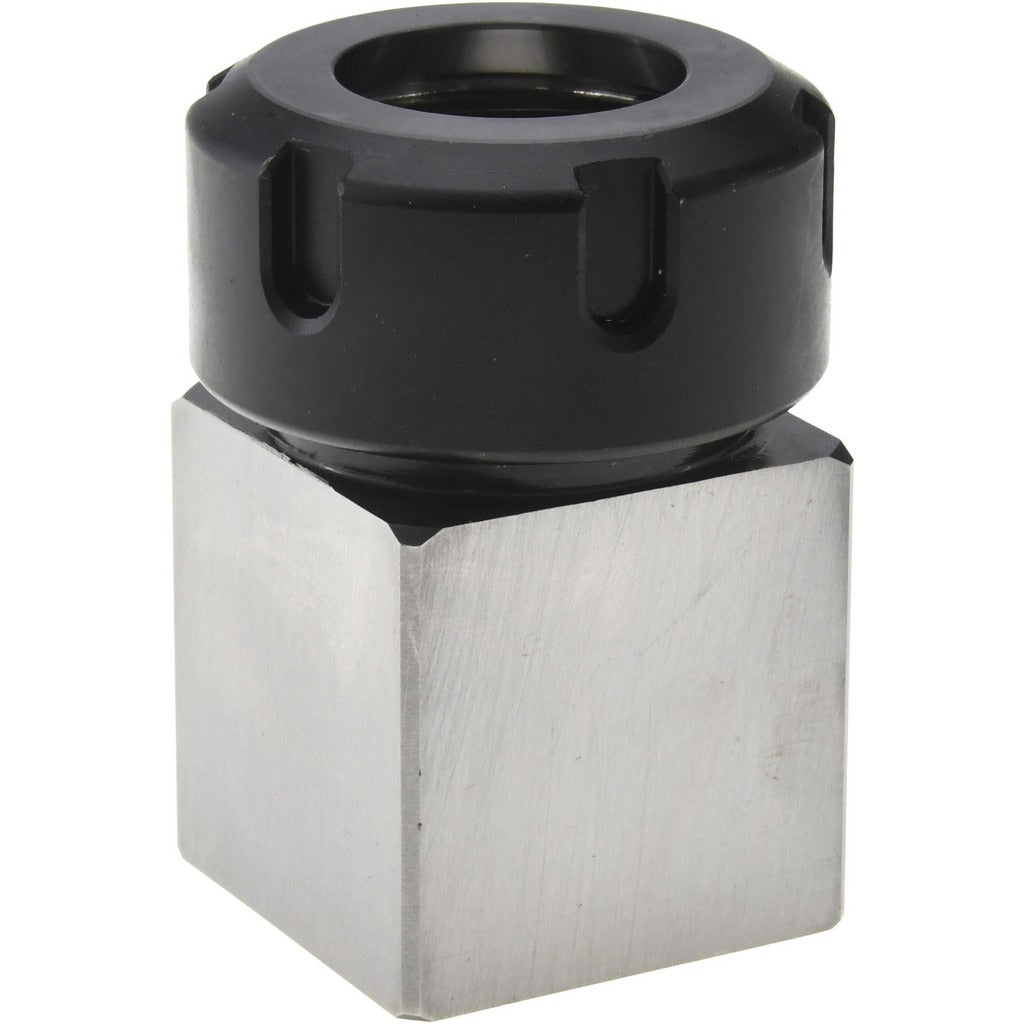

Value Collection 235-7063 Collet Block Chuck ER32

Product Description

The VALUE COLLECTION 235-7063 is a manual, non-indexing collet block chuck designed for workholding applications on milling machines, surface grinders, and similar machining equipment. It accepts ER32-series collets and handles a clamping range from 3/32 inch up to 13/16 inch in diameter. The horizontal orientation makes it well suited for setups where the workpiece axis runs parallel to the machine table. Constructed from steel throughout, the chuck provides the rigidity needed to maintain consistent clamping force during cutting operations. Machinists and toolroom technicians install this fixture when a low-profile, manually actuated collet block is required for precision part holding.

This collet block chuck is used in job shop and production machining environments where ER32 collets are already in circulation. The horizontal orientation is commonly chosen for milling, grinding, or inspection setups that require repeatable part positioning without an indexing mechanism. Its compact footprint makes it practical in tight fixture arrangements or on smaller machine tables.

Key Features

• Accepts ER32-series collets for broad tooling compatibility across common collet inventories
• Manual activation with no pneumatic or hydraulic circuit required
• Horizontal orientation supports workpiece setups parallel to the machine table
• Clamping range from 3/32 inch to 13/16 inch covers a wide variety of workpiece diameters
• All-steel construction delivers rigidity and durability in production environments
• Compact body dimensions suit tight fixture layouts and smaller machine tables

Compatibility

Compatible with ER32-series collets. Designed as a non-indexing collet block chuck for use in standard milling, grinding, and workholding fixture applications where ER32 tooling is specified.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Secure the collet block to the machine table or fixture plate using appropriate clamping hardware before loading a collet and workpiece. Verify that the machine spindle and any moving axes are fully stopped and locked out before adjusting or removing the chuck. Do not exceed the rated collet capacity range when selecting a collet for a given workpiece diameter.
