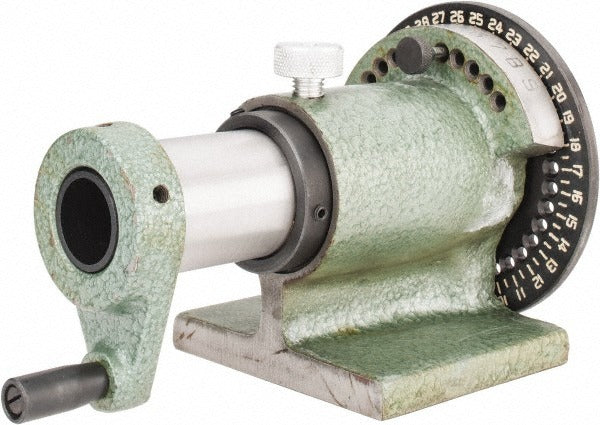

Value Collection 235-6011 Horizontal Spin Collet Indexer

Product Description

The VALUE COLLECTION 235-6011 is a horizontal spin collet indexer designed for manual indexing operations on the machine shop floor. It accepts 5C collets and handles workpieces up to 1-1/8 inches in maximum collet capacity. The indexer provides 36 evenly spaced indexing increments, allowing precise rotational positioning for milling, drilling, and other secondary operations. Spindle runout is rated at 0.0040 inches, delivering consistent repeatability for production and toolroom work. At 13.68 pounds, the unit is solidly built for stable bench or fixture mounting. Machinists and toolroom technicians use this indexer when manual rotational control is required between operations.

This indexer is suited for use in job shops, production facilities, and toolrooms where 5C collet tooling is already in use. The horizontal orientation makes it compatible with typical milling machine setups and rotary table work. Manual operation keeps the setup simple and eliminates the need for pneumatic or motorized indexing equipment. It is appropriate for low-to-medium volume runs where operator-controlled indexing is practical and where 36-position repeatability meets the job requirement.

Key Features

• 36 indexing increments for precise manual rotational positioning
• 5C collet series compatibility integrates with existing 5C tooling
• Maximum collet capacity of 1-1/8 inches accommodates a wide range of workpiece diameters
• Spindle runout of 0.0040 inches supports consistent, repeatable work holding
• Manual operation requires no pneumatic or electrical hookup
• Horizontal orientation suits standard milling and secondary-operation setups

Compatibility

Designed for use with 5C series collets in horizontal spin indexing applications. Verify collet compatibility and workpiece diameter against the 1-1/8 inch maximum collet capacity before use.

Installation Notes

Installation and setup should be performed by a qualified machinist or toolroom technician familiar with workholding equipment. Secure the indexer firmly to the machine table or fixture plate before loading a collet or workpiece. Ensure all clamping and locking mechanisms are fully engaged before beginning any cutting operation. Follow the machine tool manufacturer guidelines and applicable shop safety procedures when operating any indexing equipment.
