Value Collection -2300-1/2 Adjustable Clevis Pin 1/2 in

Product Description

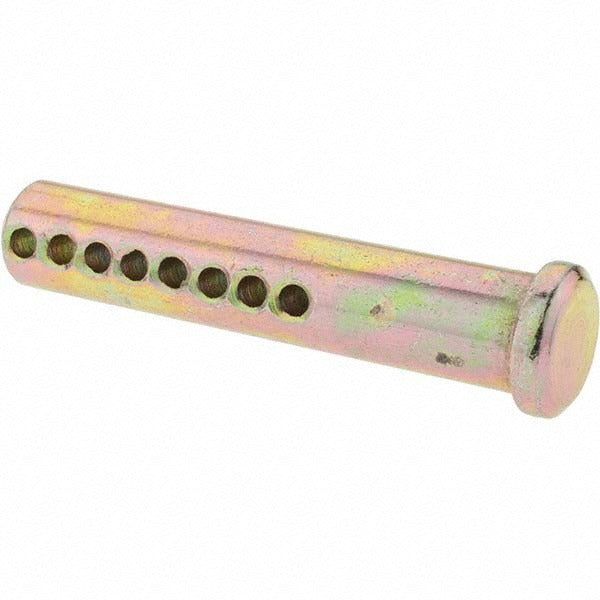

The VALUE COLLECTION -2300-1/2 is a zinc-plated steel adjustable clevis pin designed for use in linkage assemblies, yokes, and clevis connections across a range of mechanical and industrial applications. The pin measures 0.5 inches in diameter with an overall length of 2.5 inches and a usable length of 2-5/16 inches. A 9/64-inch cross hole accommodates a cotter pin or snap ring to secure the pin in position. The zinc-plated finish provides basic corrosion resistance for general-purpose service. This type of fastener is a standard component in control linkages, HVAC damper assemblies, actuator mounts, and similar mechanical connections where an adjustable, removable pin is required.

Adjustable clevis pins are commonly used in residential and commercial mechanical systems, including HVAC actuator linkages, damper rod connections, and equipment control assemblies. They are also found in agricultural, industrial, and general fabrication applications where a removable pivot or connecting pin is needed. The 0.5-inch diameter and 2-5/16-inch usable length suit a wide range of standard clevis and yoke fittings. Installation or replacement is typically performed by HVAC technicians, maintenance mechanics, or millwrights working on linkage-driven systems.

Key Features

• 0.5 inch pin diameter for use with standard half-inch clevis and yoke hardware
• 2-5/16 inch usable length accommodates common clevis fitting depths
• 9/64 inch cross hole accepts a cotter pin or snap ring for positive retention
• Zinc-plated steel construction for general-purpose corrosion resistance
• Overall length of 2.5 inches for straightforward dimensional planning

Compatibility

Designed as a general-purpose replacement or service clevis pin for standard 0.5-inch diameter clevis, yoke, and linkage assemblies in mechanical, HVAC, and industrial equipment.

Installation Notes

Installation is performed by qualified mechanics or technicians. De-energize or lock out any actuator, motor, or powered linkage before removing or installing a clevis pin. Insert the pin fully through the clevis and mating fitting, then secure the cross hole with an appropriately sized cotter pin or snap ring to prevent backing out during operation. Do not reuse deformed or corroded cotter pins.
