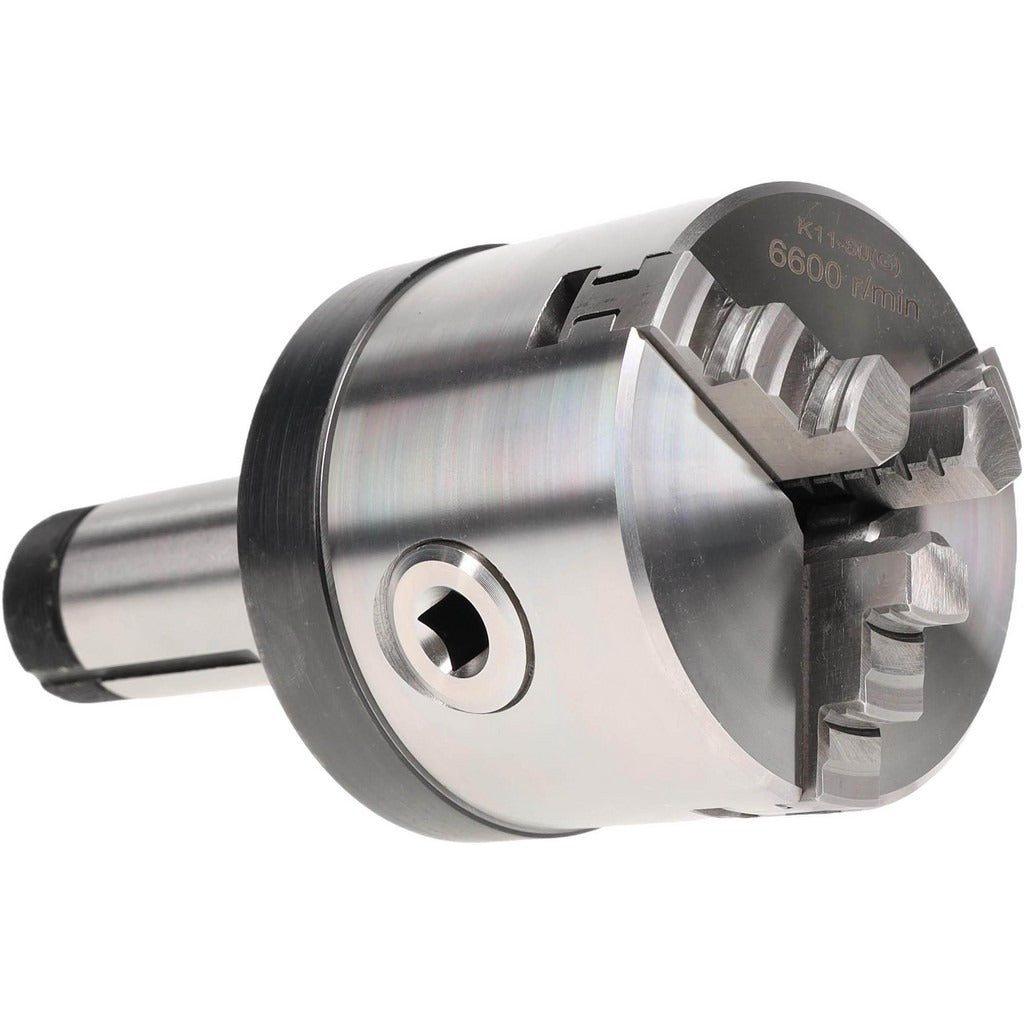

Value Collection 230-6003 3 Inch 3 Jaw Lathe Chuck 5C

Product Description

The VALUE COLLECTION 230-6003 is a 3-inch diameter, 3-jaw self-centering manual lathe chuck designed for precision workholding on lathes equipped with a 5C shank spindle mount. The body is cast from cast iron for rigidity and durability under continuous machine shop use. The self-centering jaw design allows all three jaws to move simultaneously, reducing setup time when gripping round or hexagonal stock. A through-hole diameter of 0.765 inches accommodates bar stock fed through the spindle. TIR repeatability is rated at 0.003 inches, making it suitable for production and tool room applications where consistent runout control matters. Licensed machinists and machine shop technicians are the primary installers and operators.

This chuck is suited for manual lathe operations in job shops, tool rooms, and production environments. The 5C shank mount is a widely used spindle interface found on collet-ready lathes and indexing fixtures. The package includes a set of external jaws and a set of internal jaws, giving the operator flexibility for both OD and ID gripping applications. One-piece, non-reversible jaw construction keeps the setup straightforward and eliminates loose jaw segments during changeovers.

Key Features

• 3-inch chuck diameter with self-centering 3-jaw design for fast, repeatable workholding
• 5C shank mount for compatibility with 5C-ready lathe spindles and indexing fixtures
• 0.765-inch through-hole diameter supports bar stock feeding through the spindle
• Cast iron body provides rigidity and resistance to machining forces
• TIR repeatability of 0.003 inches for consistent runout performance
• Includes both external and internal jaw sets for OD and ID clamping

Compatibility

Designed for use with lathes and indexing fixtures equipped with a 5C shank spindle interface.

Installation Notes

Installation should be performed by a qualified machinist or machine shop technician. Power down and lock out the lathe before mounting or removing the chuck. Ensure the 5C shank mating surfaces are clean and free of chips or burrs before seating the chuck. Verify runout with a dial indicator after mounting before returning the machine to service.
