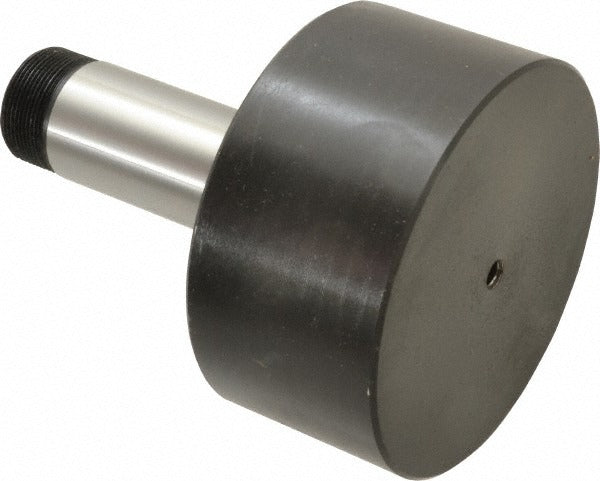

Value Collection 230-4470 5C Collet Fixture Mount Steel

Product Description

The VALUE COLLECTION 230-4470 is a 5C collet fixture mount designed for workholding applications on lathes, grinders, and rotary fixtures that accept the 5C collet series. The mount features a 4 inch face diameter and a 2 inch head length, with a total indicator runout (TIR) of 0.002 inch for repeatable, accurate part location. Constructed from steel throughout, this fixture mount provides the rigidity needed for turning, grinding, and inspection setups. Machinists and toolroom technicians install this type of mount when a standard 5C collet nose or chuck needs to be adapted to a fixture plate or rotary table.

This fixture mount is suited for machine shop and toolroom environments where 5C collet tooling is the standard workholding system. It is commonly used on manual lathes, CNC lathes with 5C spindle noses, surface grinders with rotary attachments, and inspection fixtures. The 4 inch face diameter accommodates standard bolt-circle patterns found on compatible rotary and indexing equipment. At 7.91 pounds, the steel construction contributes to stable, chatter-resistant setups during machining operations.

Key Features

• 5C collet series compatibility for use with the widely adopted 5C workholding standard
• 4 inch face diameter to fit standard rotary table and fixture plate bolt patterns
• 2 inch head length for clearance and reach in typical lathe and fixture setups
• 0.002 inch TIR for consistent, repeatable part location and runout control
• All-steel construction for rigidity and durability in production and toolroom use

Compatibility

Designed as an OEM-style replacement and direct-fit workholding accessory for machines and fixtures that accept the 5C collet series with a 4 inch face mounting diameter.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Before mounting, ensure the spindle or fixture plate is fully de-energized and brought to a complete stop. Clean the mating surfaces and inspect the bore and face for burrs or damage before seating the mount. Verify TIR with a dial indicator after installation to confirm proper seating and alignment before beginning any cutting or grinding operation.
