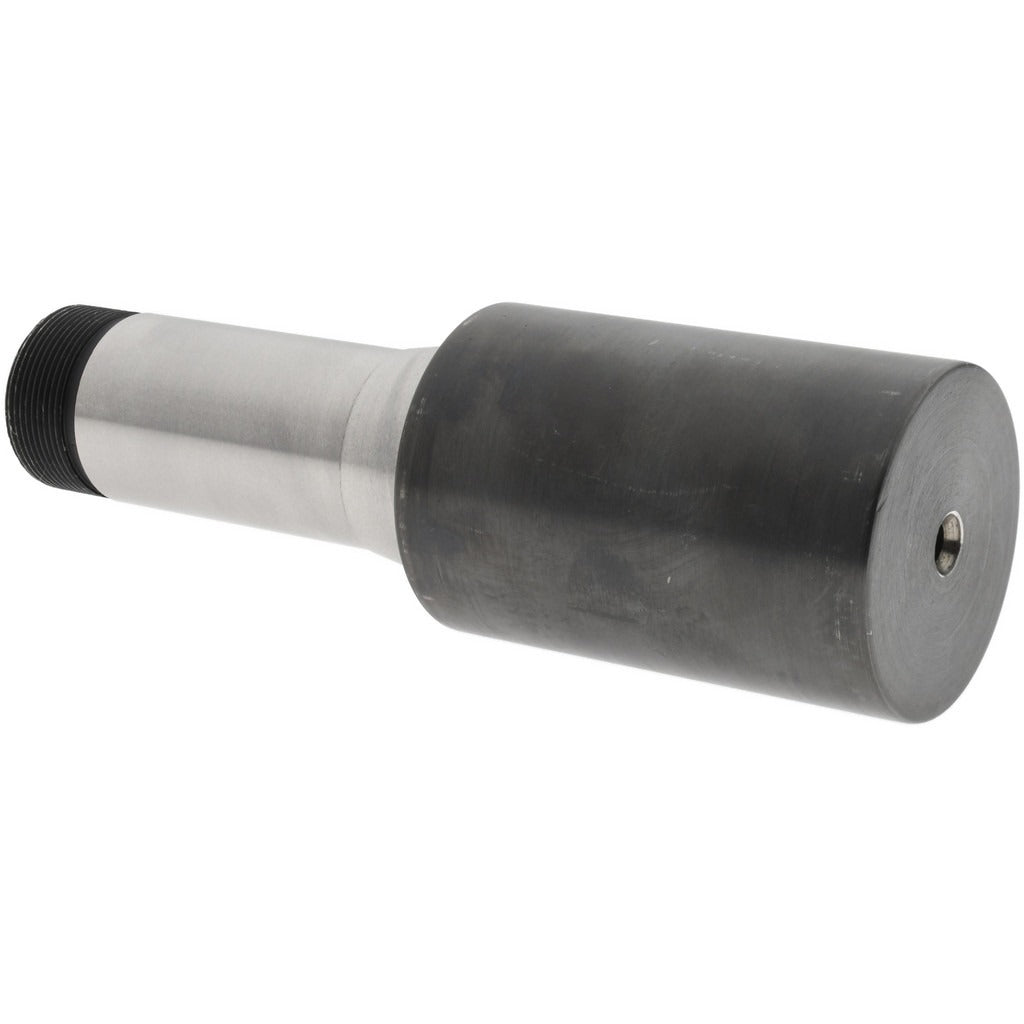

Value Collection 230-4462 5C Collet Fixture Mount

Product Description

The VALUE COLLECTION 230-4462 is a 5C collet fixture mount designed for workholding applications in machining environments. With a 3-inch head length and a 2-inch face diameter, this mount provides a stable, concentric interface between the collet and the fixture or chuck body. Constructed from steel, it delivers the rigidity and durability required for repetitive turning, grinding, and inspection setups. The 230-4462 holds a total indicated runout (TIR) of 0.00197 inches, supporting consistent part alignment across production runs. Machinists and toolroom technicians install this type of fixture mount when precision workholding and repeatable part positioning are required.

This 5C collet fixture mount is suited for use on lathes, rotary tables, and dedicated fixture stations that accept the 5C collet series. It is appropriate for both job-shop and production environments where 5C tooling is the standard workholding system. The steel construction and close TIR tolerance make it a practical choice for turning, cylindrical grinding, and part inspection setups where runout directly affects finished part quality.

Key Features

• 3-inch head length provides reach and clearance for a range of workholding configurations
• 2-inch face diameter sized for standard 5C collet series engagement
• Steel construction for rigidity and resistance to wear in production use
• TIR of 0.00197 inches supports precise, repeatable part alignment
• Compatible with the widely used 5C collet system common across lathes and fixture plates

Compatibility

Designed as an OEM-style replacement and standard fitment for 5C collet series workholding systems used on lathes, rotary indexers, and fixture stations that accept 5C tooling.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Ensure the spindle or fixture station is fully stopped and de-energized before mounting or removing the collet fixture mount. Clean all mating surfaces and inspect for burrs or debris that could affect seating and TIR. Verify runout with a dial indicator after installation before beginning any production run.
