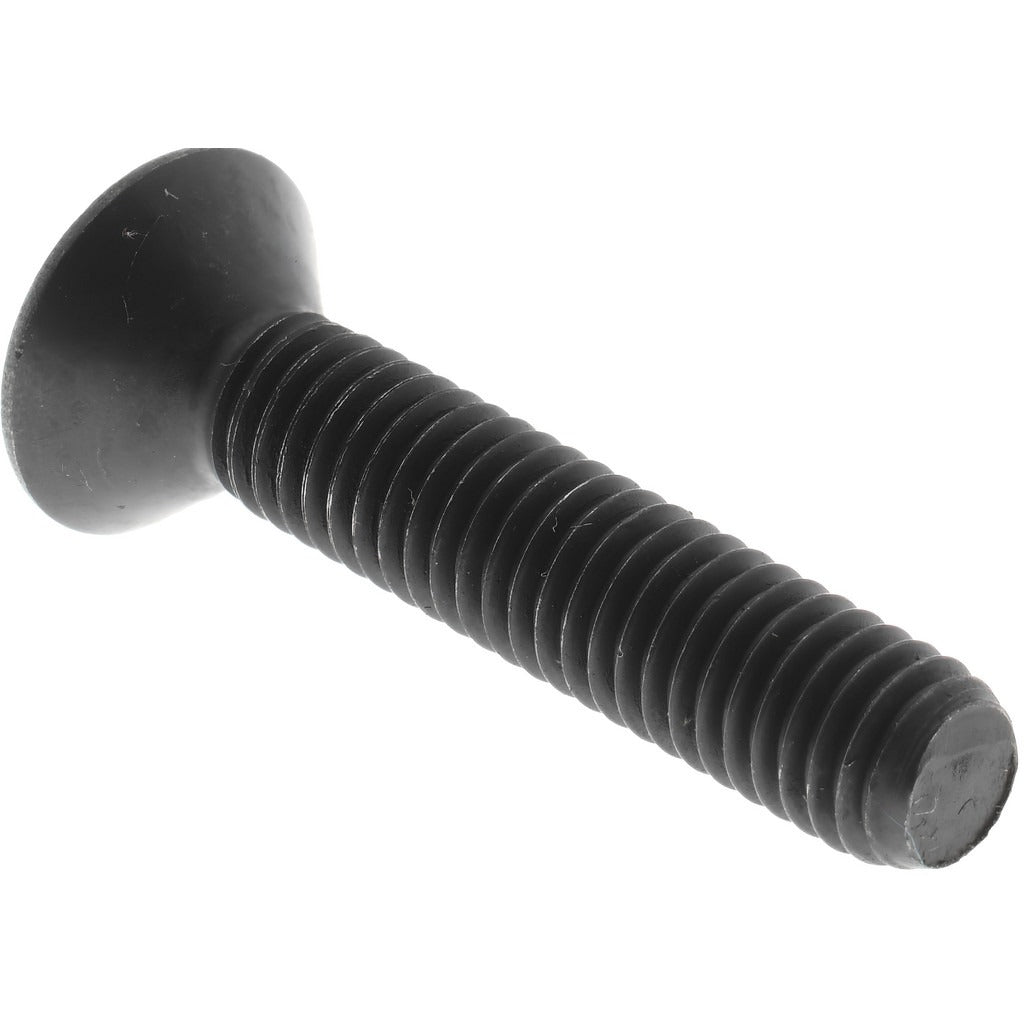

Value Collection 211083PR Flat Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 211083PR is a flat socket cap screw engineered for precision fastening applications where a flush or countersunk head profile is required. It features an 82-degree flat head with a 1/8-inch hex socket drive and is fully threaded along its 1-inch overall length. Manufactured from alloy steel with a black oxide finish, this fastener provides good corrosion resistance in light-duty environments and is dimensioned to the inch measurement system. It is a standard choice for machinists, maintenance technicians, and fabricators working with metal assemblies.

This screw is suited for use in mechanical assemblies, fixture building, machine frames, and general metalworking applications where a low-profile countersunk fastener is needed. The 10-32 UNF thread specification makes it compatible with fine-thread tapped holes commonly found in precision instruments, enclosures, and light structural components. Its black oxide finish makes it a practical option for interior metal assemblies where a uniform dark appearance is preferred.

Key Features

• 82-degree flat head sits flush or below surface in properly countersunk holes
• 1/8-inch hex socket drive for use with standard hex keys or Allen wrenches
• Fully threaded 1-inch overall length for maximum thread engagement
• 10-32 UNF fine thread for precise clamping in machined components
• Alloy steel construction meets ASME/ANSI B18.3 and ASTM F835 standards
• Black oxide finish reduces surface glare and provides light corrosion protection

Compatibility

Designed for use in standard 10-32 UNF fine-thread tapped holes in metal assemblies. Conforms to ASME/ANSI B18.3 and ASTM F835 fastener standards.

Installation Notes

Installation is typically performed by machinists, millwrights, or maintenance technicians using a 1/8-inch hex key or Allen driver. The mating hole must be properly countersunk to an 82-degree angle to allow the flat head to seat flush with the workpiece surface. Do not exceed the rated torque capacity of the 10-32 thread; overtightening alloy steel fasteners in softer base materials can strip threads. Follow applicable fastener and machinery safety codes for the application.
