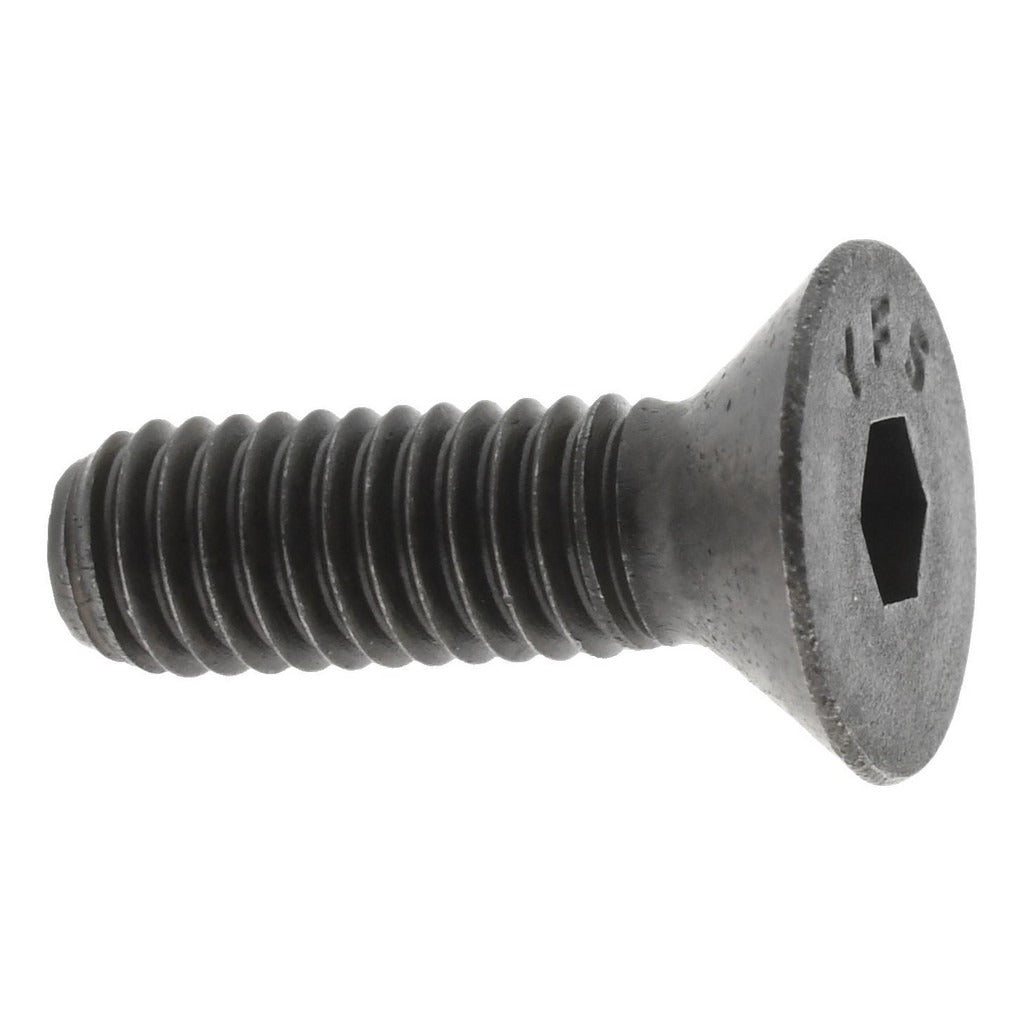

Value Collection 211079P Flat Socket Cap Screw 10-32 5/8 in

Product Description

The VALUE COLLECTION 211079P is a flat socket cap screw designed for flush or countersunk fastening applications. It features an 82-degree flat head driven by a 1/8-inch hex socket, allowing the fastener to sit flush with or below the surface of the mated material. The screw is fully threaded along its 5/8-inch overall length with a 10-32 UNF thread form. Constructed from alloy steel with a black oxide finish, it delivers solid mechanical strength with modest corrosion resistance in dry or lightly protected environments. Machinists, millwrights, and maintenance technicians commonly install these fasteners in precision assemblies, fixtures, and equipment panels.

This screw is well-suited for light industrial, mechanical, and equipment-assembly applications where a low-profile head is required. The 10-32 UNF thread is commonly found in instrument panels, electronics enclosures, HVAC equipment brackets, and sheet-metal assemblies. The black oxide finish blends with dark-anodized or painted surfaces and provides a clean appearance in finished assemblies. Fully threaded construction maximizes thread engagement across the full grip length, which is useful in thinner stock where partial threading would reduce holding strength.

Key Features

• 82-degree flat head profile for flush or countersunk installation
• 1/8-inch hex socket drive for precise torque application in tight clearances
• Fully threaded 5/8-inch overall length for maximum thread engagement
• 10-32 UNF thread form for compatibility with fine-thread tapped holes
• Alloy steel construction meets ASME/ANSI B18.3 and ASTM F835 standards
• Black oxide finish for low-profile, low-reflectance appearance

Compatibility

Designed for use in any 10-32 UNF tapped or threaded hole requiring an 82-degree countersunk flat-head fastener per ASME/ANSI B18.3.

Installation Notes

Installation requires a 1/8-inch hex key or hex socket driver. Ensure the mating countersink is machined or drilled to an 82-degree included angle for proper head seating. Power down and de-energize any equipment before disassembling panels or enclosures secured with these fasteners. Avoid over-torquing, as alloy steel screws in fine-threaded tapped holes in softer parent materials can strip threads.
