Value Collection 211061PR Flat Socket Cap Screw 10-24

Product Description

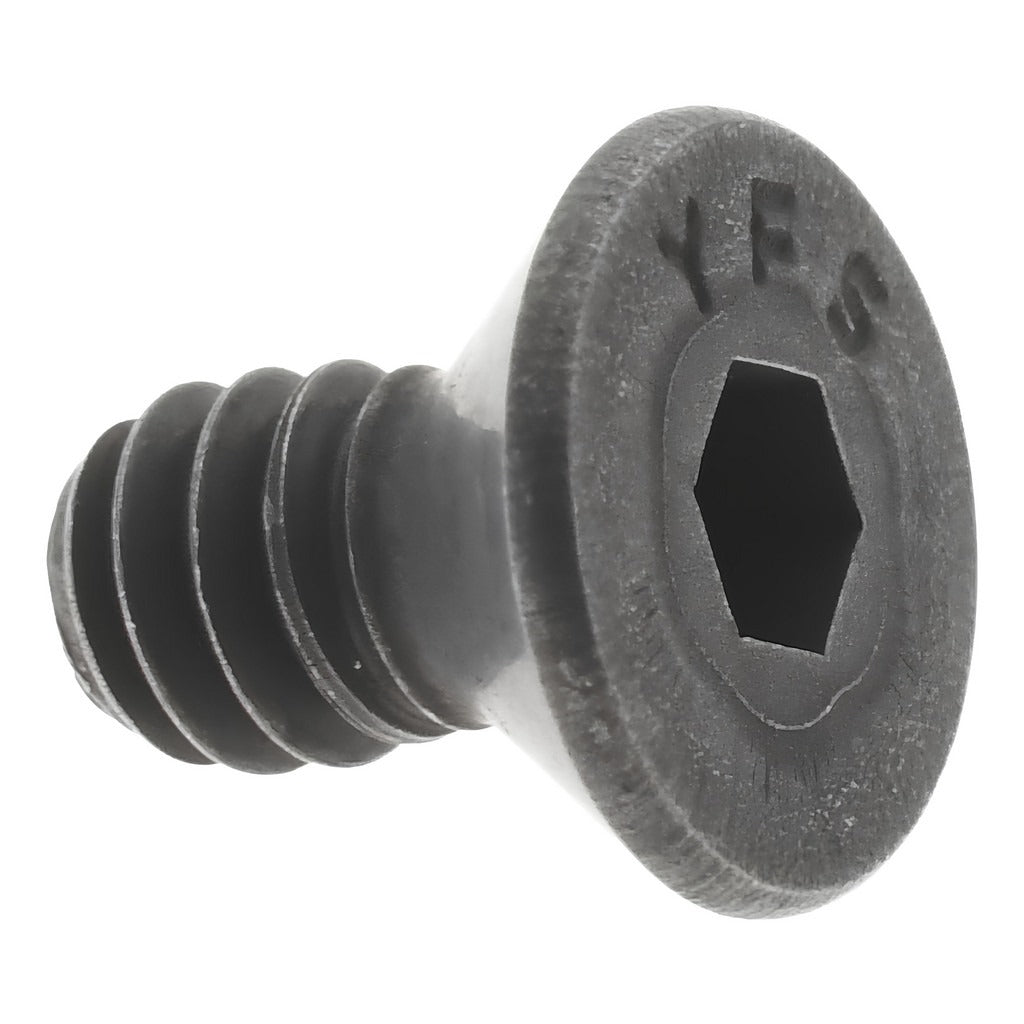

The VALUE COLLECTION 211061PR is a 10-24 x 3/8 inch flat socket cap screw manufactured from alloy steel with a black oxide finish. It features an 82-degree flat head profile and a 1/8 inch hex socket drive. The screw is fully threaded along its overall length and conforms to UNC thread standards. This fastener is designed for flush or countersunk installations where a low-profile head is required. Machinists, millwrights, maintenance technicians, and general contractors use this type of screw in metal fabrication, machinery assembly, and equipment mounting applications.

This flat socket cap screw is suited for light-duty mechanical assemblies, panels, and fixtures where the head must sit flush with or below the mating surface. Its black oxide finish provides moderate corrosion resistance and reduces light reflection, making it appropriate for indoor industrial and commercial applications. The hex socket drive allows installation with a standard Allen wrench or hex key driver in confined spaces where a wrench head would not fit.

Key Features

• 82-degree flat head profile for flush countersunk installations
• 1/8 inch hex socket drive for use with standard Allen keys or hex drivers
• Fully threaded along overall length for maximum thread engagement
• Alloy steel construction for strength in mechanical assembly applications
• Black oxide finish for moderate corrosion resistance and low-glare appearance
• Meets ASME/ANSI B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard UNC 10-24 flat socket cap screw for use in any application requiring an 82-degree countersunk hex socket fastener per ASME/ANSI B18.3 and ASTM F835 specifications.

Installation Notes

Installation is performed by machinists, maintenance technicians, or mechanical assemblers using a 1/8 inch hex key or Allen driver. The mating surface must be properly countersunk to an 82-degree angle to achieve a flush seating condition. Ensure the countersunk hole diameter and depth are matched to the screw head geometry before driving. Do not overtighten; apply torque according to the applicable engineering specification for the assembly.
