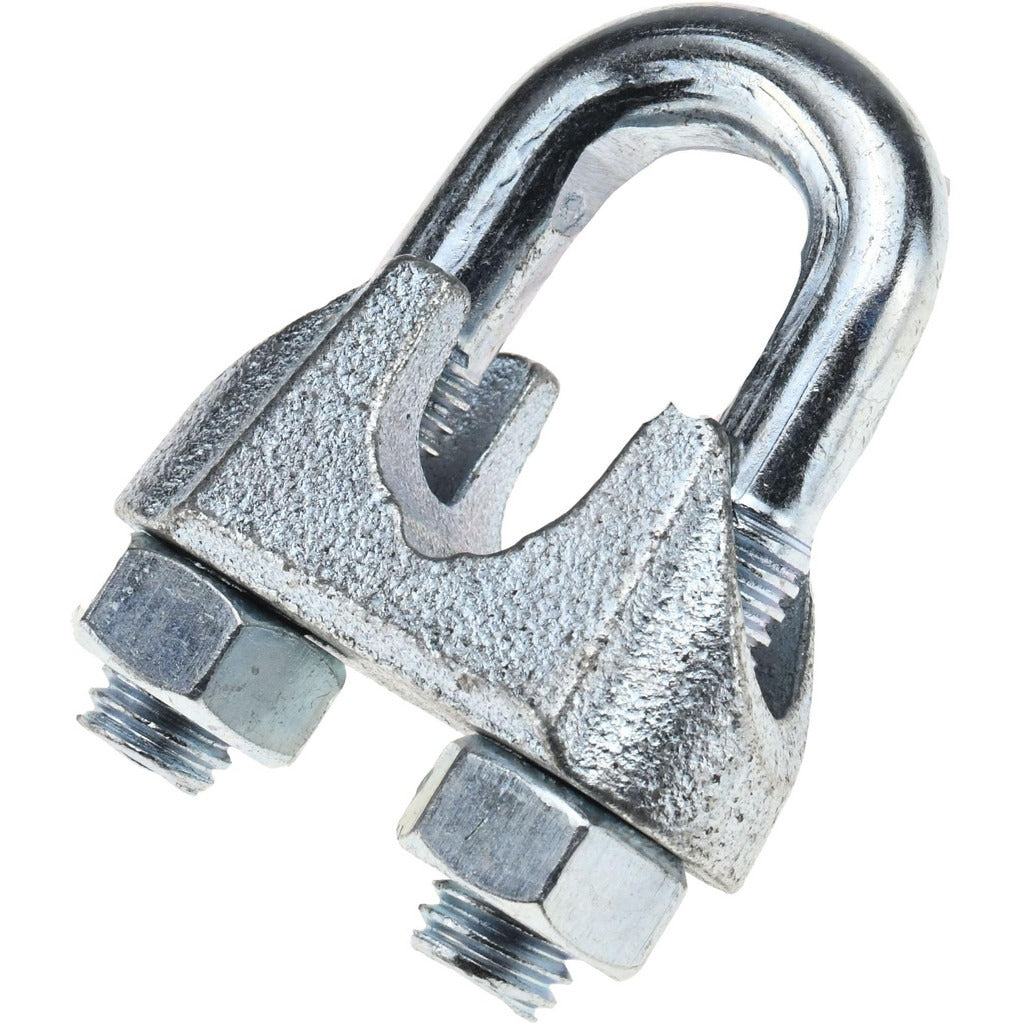

Value Collection 20945 Wire Rope Clip 5/8 in Malleable Iron

Product Description

The VALUE COLLECTION 20945 is a malleable iron wire rope clip designed to secure wire rope terminations in rigging, lifting, and tensioning applications. The clip features a galvanized finish that provides corrosion resistance for both indoor and outdoor use. Sized for 5/8 inch rope diameter, it is compatible with standard U-bolt style clip hardware. A minimum of three clips is required per connection to achieve a proper load-bearing termination. This type of hardware is installed by riggers, millwrights, and maintenance professionals working with wire rope assemblies across industrial and commercial jobsites.

This clip is suited for use in wire rope dead-end and loop terminations on hoists, guy wires, cable railings, and similar tension systems. It is sized for 5/8 inch wire rope and is sold individually. Installers should confirm the minimum clip count requirement of three per assembly when planning any connection. The galvanized finish makes it appropriate for exposed or moderately corrosive environments where bare iron would be unsuitable.

Key Features

• Sized for 5/8 inch wire rope diameter
• Malleable iron construction resists deformation under load
• Galvanized finish for corrosion resistance in exposed environments
• Minimum of three clips required per dead-end connection
• Sold as a single clip per package

Compatibility

Designed as a standard U-bolt wire rope clip for use with 5/8 inch diameter wire rope in general rigging and tensioning assemblies.

Installation Notes

Wire rope clips must be installed by qualified riggers or maintenance personnel following applicable ASME B30.26 rigging hardware standards. Power down or de-energize any associated lifting equipment before servicing wire rope terminations. The U-bolt saddle must be placed on the dead end of the rope, not the live load-bearing side, and nuts must be retightened after initial loading. Never use fewer than the minimum required number of clips for a given rope diameter.
