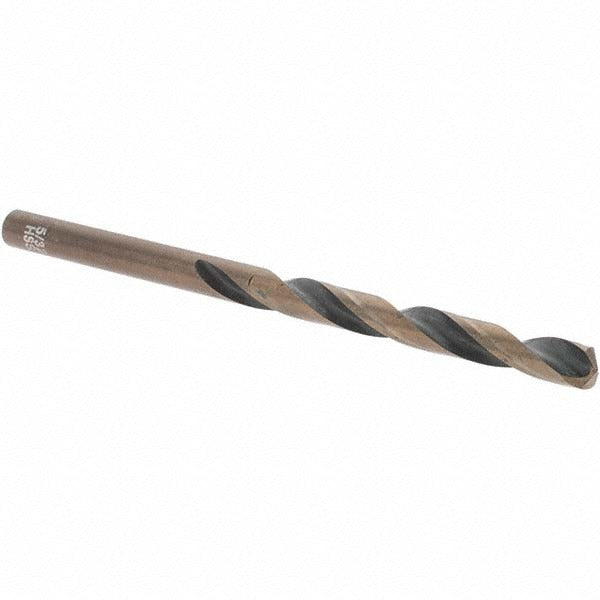

Value Collection -20906-10 Mechanics Drill Bit 5/32 in

Product Description

The VALUE COLLECTION -20906-10 is a mechanics-length high-speed steel drill bit designed for general-purpose drilling in metal and ferrous materials. It measures 5/32 inch (0.1562 inch decimal) in diameter with a 2-3/4 inch overall length and a 1-11/16 inch flute length. The 135-degree split point geometry reduces walking on contact and lowers the thrust force needed to start a hole without a center punch. The oxide finish provides a degree of lubricity and corrosion resistance during storage and use. This bit is intended for machinists, maintenance techs, and metalworking tradespeople who need a compact, stubby bit for close-quarters drilling.

This drill bit is suited for drilling carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and general steel stock. The shorter mechanics length makes it practical in tight spaces where a jobber-length bit would be difficult to control or would not fit in the chuck path. It is a solid choice for panel drilling, bracket fabrication, and field maintenance tasks where precision entry and controlled chip evacuation matter.

Key Features

• 135-degree split point reduces walk and lowers entry thrust on hard metals
• High-speed steel construction handles the heat generated in ferrous metal drilling
• Mechanics (stub) length at 2-3/4 inches overall improves rigidity and control in confined spaces
• Spiral flute with web-thinned, parallel web configuration promotes efficient chip removal
• Straight-cylindrical shank fits standard keyed and keyless drill chucks without a reducer
• Oxide finish adds surface lubricity and protects against rust during storage

Compatibility

Designed as a general-purpose mechanics-length drill bit compatible with standard 3-jaw drill chucks accepting straight-cylindrical shanks; rated for use in carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and general steel workpieces.

Installation Notes

Install and remove drill bits only after the drill or drill press has been fully powered down and brought to a complete stop. Secure the straight-cylindrical shank firmly in the chuck and verify there is no runout before beginning. Use cutting fluid or a suitable metalworking lubricant when drilling stainless or high alloy steel to extend bit life and manage heat. Right-hand cut bits require standard forward-rotation operation; do not run in reverse under load.
