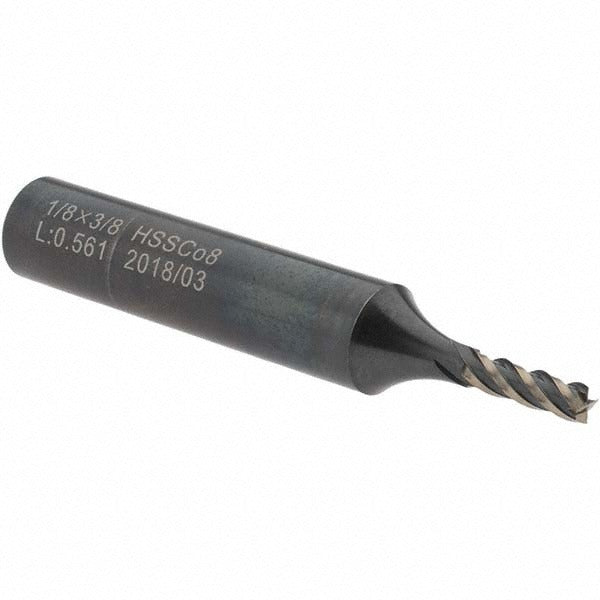

Value Collection -20550-2 Square End Mill 1/8 in 4 Flute Hss

Product Description

The VALUE COLLECTION -20550-2 is a single-end square end mill designed for milling flat surfaces, slots, and shoulders in a wide range of workpiece materials. Constructed from high speed steel (HSS) with a titanium nitride (TiN) coating, it offers improved surface hardness and wear resistance compared to uncoated HSS tooling. The cutter measures 1/8 inch in diameter with a 3/8 inch length of cut and a 2-5/16 inch overall length. Four spiral flutes with a 30-degree helix angle promote efficient chip evacuation and a smooth cutting action. This end mill is center-cutting, allowing it to plunge directly into material as well as profile and slot.

This end mill is suited for light-duty milling operations on ferrous and non-ferrous metals, plastics, and composites in job shop, toolroom, and maintenance machining environments. The 3/8 inch shank diameter fits standard collet chucks and end mill holders on manual knee mills, CNC machining centers, and benchtop milling machines. Right-hand cut and right-hand flute geometry make it compatible with conventional right-hand spindle setups. The regular length classification positions it for general-purpose work where extended reach is not required.

Key Features

• TiN coating increases surface hardness and extends tool life compared to bare HSS
• Center-cutting design allows direct plunge entry into material
• 4 spiral flutes with 30-degree helix angle for efficient chip evacuation
• Right-hand cut and right-hand flute direction for standard spindle setups
• Regular length classification for general-purpose slotting and profiling
• 3/8 inch shank fits common collet and end mill holder systems

Compatibility

Designed as a general-purpose replacement or stock end mill for use in any milling machine or machining center equipped with a collet chuck or end mill holder accepting a 3/8 inch straight shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully into the collet or holder to the recommended minimum engagement depth before tightening. Verify runout with a dial indicator after clamping, as excessive runout accelerates wear and reduces cut quality on a small-diameter tool like this one.
