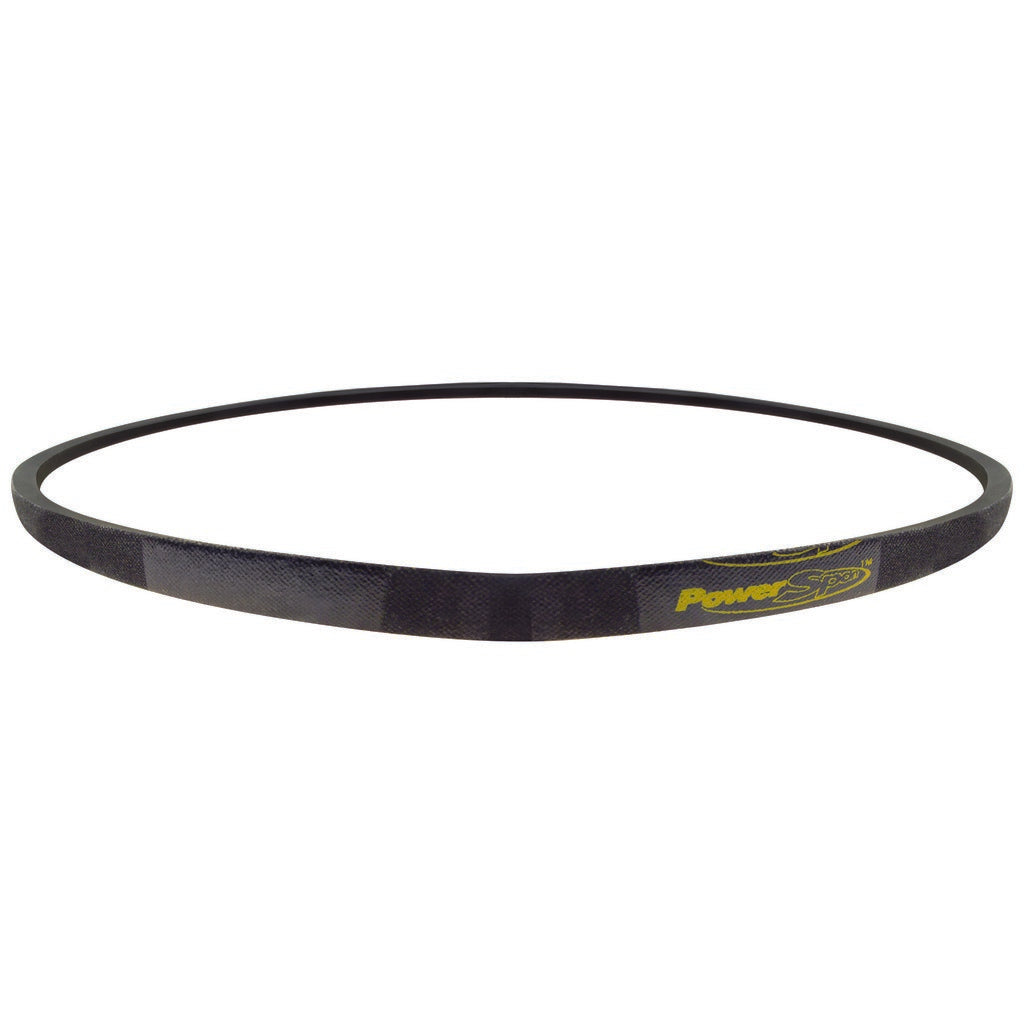

Value Collection 20543719 8V Section V-belt 224 in Narrow

Product Description

The VALUE COLLECTION 20543719 is a narrow 8V-section V-belt designed for heavy-duty power transmission applications. Built from neoprene rubber, this belt delivers reliable torque transfer in demanding industrial and HVAC drive systems. The 8V profile is a narrow, high-capacity section suited for multi-belt drives where space is limited but load requirements are high. With a 224-inch outside length, this belt is sized for large-frame equipment running on significant center distances. Weighing approximately 7.9 pounds, it is a substantial belt appropriate for commercial and industrial service. Belt number 8V2240 corresponds to the industry-standard designation for this size and section.

This belt is used in industrial drive systems, large commercial HVAC equipment, compressors, pumps, fans, and blowers where 8V narrow-section belts are specified. The 8V section is common in multi-groove sheave arrangements on equipment requiring high horsepower transmission in a compact drive configuration. HVAC technicians, millwrights, and industrial mechanics are the typical installers. The neoprene construction provides resistance to oil, heat, and flex fatigue in continuous-duty applications.

Key Features

• 8V narrow-section profile for high-capacity, compact drive arrangements
• 224-inch outside length matching industry belt number 8V2240
• Neoprene rubber construction resists oil, heat, and flex fatigue
• Narrow belt style allows higher power ratings per belt versus classical sections
• Suited for multi-belt sheave drives on large commercial and industrial equipment

Compatibility

Designed as a standard 8V-section replacement V-belt for industrial and commercial drive systems that specify a 224-inch outside length narrow belt, also identified by the industry designation 8V2240.

Installation Notes

Belt replacement should be performed by a qualified HVAC technician, millwright, or industrial mechanic. De-energize and lock out all power to the drive system before removing the belt guard or handling belts. When installing, adjust sheave center distance to allow proper belt seating without prying, then tension to the equipment manufacturer's specification using a tension gauge. Replace all belts in a matched set on multi-belt drives to prevent uneven load sharing and premature wear.
