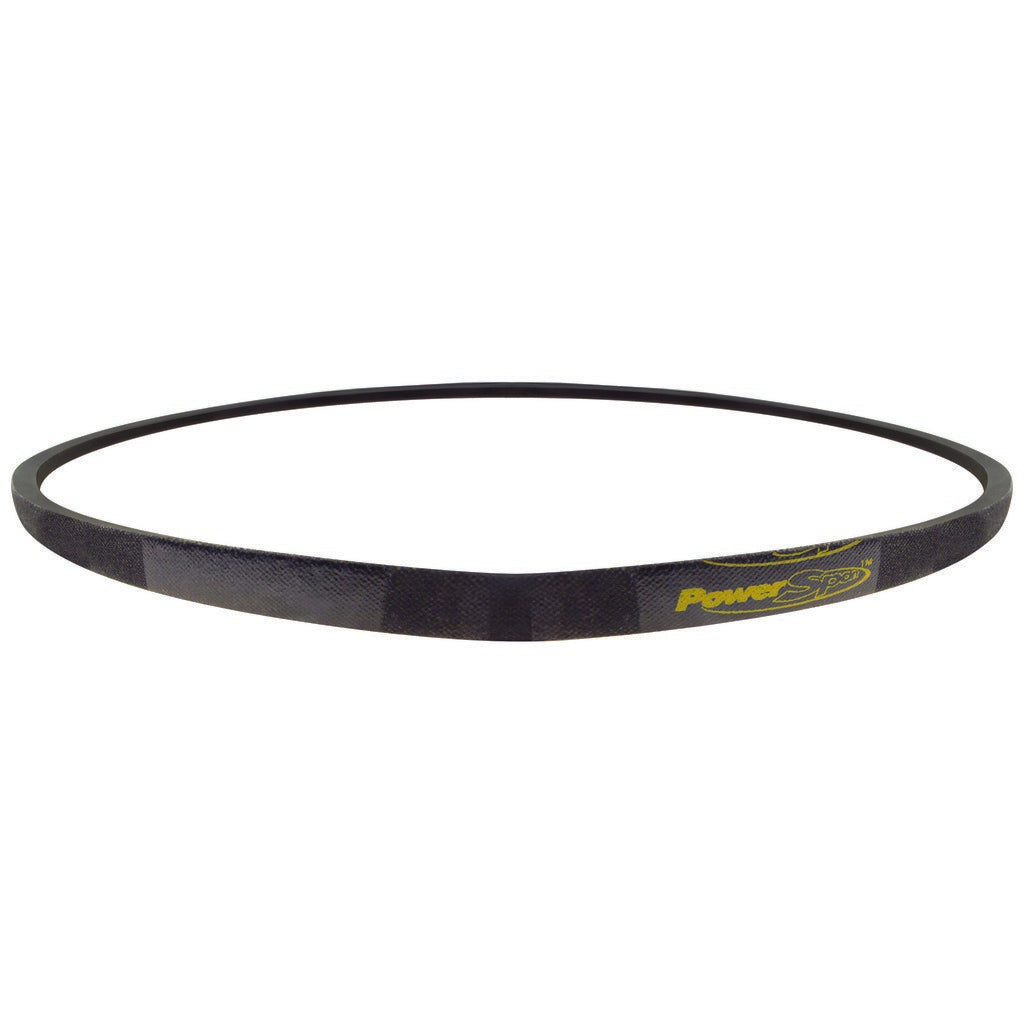

Value Collection 20472518 V-belt 4L 48 in Fractional Hp

Product Description

The VALUE COLLECTION 20472518 is a 4L-section fractional horsepower V-belt used in light-duty power transmission applications across HVAC, appliance, and small motor systems. Built from rubber, this belt measures 48 inches in outside length and carries the industry belt designation 4L480. The 4L cross-section is a standard fractional horsepower profile, narrower than classical A or B sections, and is widely used on fan drives, blower assemblies, and small compressor setups where low-torque, high-speed operation is typical. It weighs 0.29 pounds and ships as a single belt.

This belt fits residential and light commercial equipment that calls for a 4L-section drive belt. Common applications include furnace and air handler blower assemblies, evaporative cooler fan drives, pool equipment motor drives, small air compressors, and general shop equipment. Any system spec sheet calling for a 4L480 or equivalent fractional horsepower belt is a direct application for this part. Technicians in HVAC, refrigeration, and general mechanical trades routinely stock this belt designation as a standard service item.

Key Features

• 4L belt section profile for fractional horsepower drive applications
• 48-inch outside length, belt designation 4L480
• Rubber construction for flexibility and resistance to heat and wear
• Lightweight at 0.29 pounds for easy handling and single-technician installation
• Sold individually as a single belt per package

Compatibility

Designed as a direct replacement for any application specifying a 4L480 fractional horsepower V-belt. Confirm the driven equipment manufacturer's belt designation before installation.

Installation Notes

V-belt replacement is typically performed by HVAC technicians, mechanical contractors, or qualified maintenance personnel. Always disconnect and lock out electrical power to the motor before removing belt guards or accessing the drive assembly. Adjust sheave or pulley spacing to allow belt seating without forcing, then tension per the equipment manufacturer's specification. Never pry a belt over a sheave using a tool, as this can damage belt cords and reduce service life.
