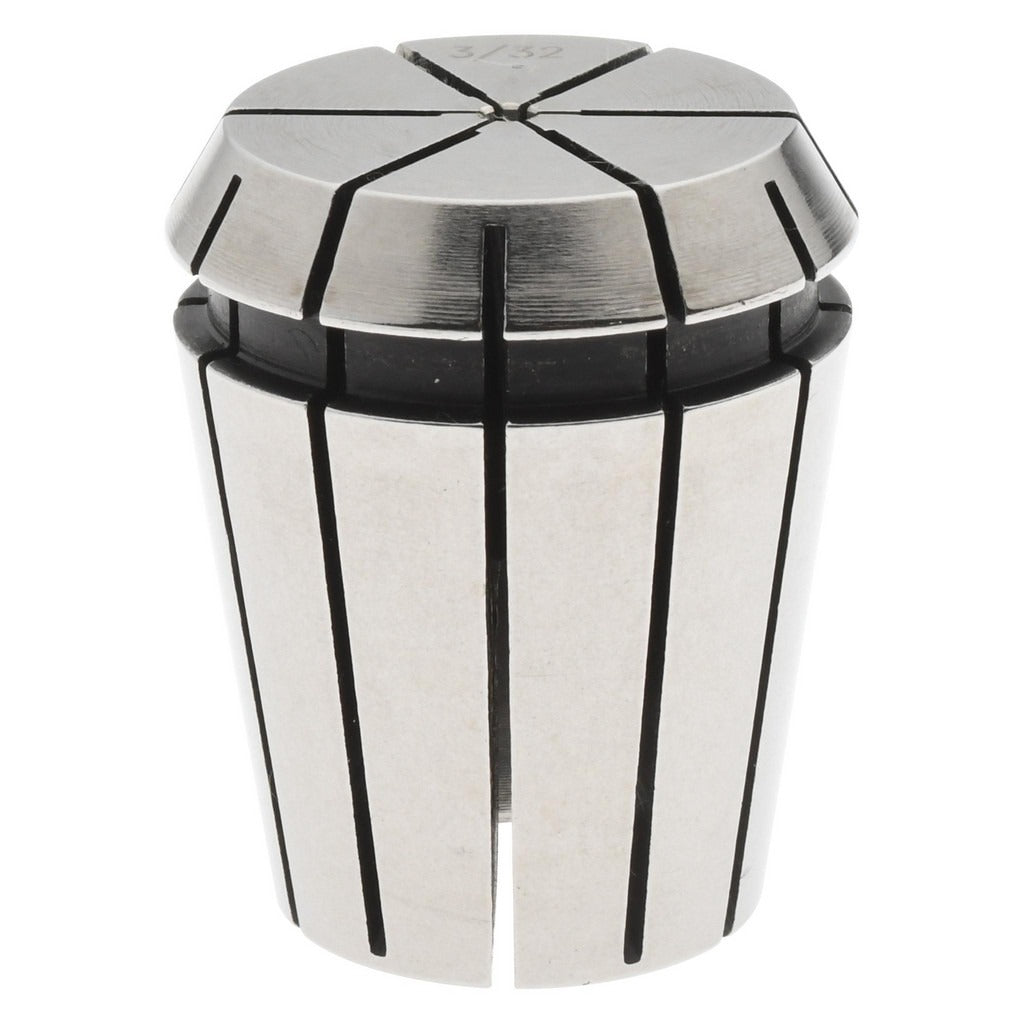

Value Collection 204-3206 ER32 Er Collet 0.094 in

Product Description

The VALUE COLLECTION 204-3206 is an ER32-series collet designed for use in ER32-compatible collet chucks on CNC machining centers, manual mills, and lathes. It holds workpieces or cutting tools with a clamping diameter of 0.094 inches (3/32 inch) and delivers a total indicator runout (TIR) of 0.0005 inches, supporting accurate, repeatable tool holding in precision machining operations. Machinists and CNC technicians install this collet when they need consistent concentricity at smaller bore diameters. The ER32 format is one of the most widely adopted collet standards in production and job-shop environments.

This collet is suited for light-to-medium-duty material removal where a 3/32-inch shank tool or workpiece needs secure, low-runout clamping. It fits any ER32 collet chuck body, making it a direct drop-in for existing tooling setups on vertical machining centers, horizontal mills, and turning centers equipped with live tooling. It is equally applicable in manual Bridgeport-style mill setups using an ER32 chuck.

Key Features

• ER32 collet series — fits any standard ER32 collet chuck
• 0.094 inch (3/32 inch) clamping diameter for small-shank tooling
• 0.0005 inch TIR for precise, low-runout tool holding
• UNSPSC Code 27112800 — classified as a standard cutting tool holding device
• Single-piece packaging, minimum order quantity of 1

Compatibility

Designed as a standard ER32-series collet for use with any ER32-compatible collet chuck body. No specific machine model or brand compatibility was stated by the manufacturer for this part number.

Installation Notes

Installation is performed by a machinist or CNC technician. Before installing or removing the collet, power down and lock out the machine spindle per applicable shop safety and OSHA lockout/tagout procedures. Seat the collet into the chuck nut before threading onto the chuck body — never thread the nut onto the chuck body with the collet absent or improperly seated. Verify TIR with a dial test indicator after clamping to confirm runout is within tolerance for the operation.
