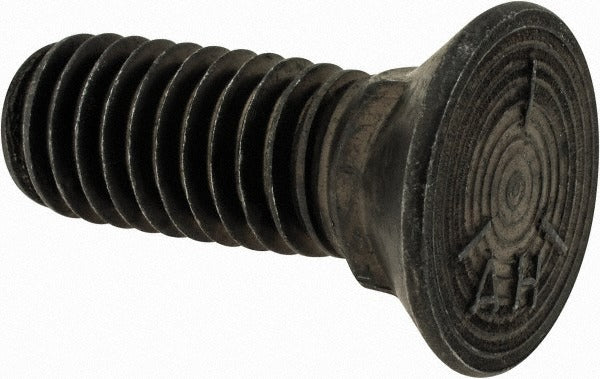

Value Collection 203075MSC Plow Bolt 7/16-14 Unc Grade 5 Steel

Product Description

The VALUE COLLECTION 203075MSC is a Grade 5 steel plow bolt with a 7/16-14 UNC thread and an overall length of 1-1/4 inches. Plow bolts use a countersunk flat head with a square neck that resists rotation during installation, making them the standard choice for moldboard plows, grader blades, cutting edges, and other high-wear ground-engaging equipment. This bolt ships uncoated and meets ASME/ANSI B18.9 and SAE J429 standards for dimensional accuracy and mechanical strength. Licensed tradespeople and equipment technicians install these in agricultural, construction, and road maintenance applications where the flush head profile is required to avoid interference with soil or material flow.

This plow bolt is suited for use in residential, commercial, and municipal equipment maintenance. Typical install scenarios include replacing worn or sheared fasteners on snow plow cutting edges, road grader blades, land-leveling equipment, and agricultural tillage tools. The 7/16-14 UNC thread pitch is a common coarse-thread specification found on a wide range of North American-manufactured ground-engaging attachments. A matching Grade 5 or higher hex nut is required for a properly rated assembly. Minimum order quantity is 50 pieces.

Key Features

• 7/16-14 UNC coarse thread for broad compatibility with standard North American fastener patterns
• Grade 5 steel construction providing a minimum tensile strength suitable for high-load ground-engaging applications
• 1-1/4 inches overall length suits standard cutting-edge and blade thicknesses
• Uncoated finish for straightforward field inspection and replacement
• Meets ASME/ANSI B18.9 and SAE J429 dimensional and mechanical standards
• Square neck under the countersunk head prevents rotation during nut torquing

Compatibility

Designed as an OEM-style replacement plow bolt for ground-engaging equipment that specifies a 7/16-14 UNC countersunk flat-head fastener meeting ASME/ANSI B18.9 geometry and SAE J429 Grade 5 mechanical requirements.

Installation Notes

Plow bolts are typically installed by equipment mechanics and field technicians servicing ground-engaging attachments. Always disengage and power down all hydraulic and mechanical systems before replacing cutting-edge hardware. Insert the bolt head into the countersunk hole from the wear side so the square neck seats into the matching recess, then thread the nut from the back side. Use a calibrated torque wrench and follow the equipment manufacturer's torque specification for 7/16-14 Grade 5 hardware; do not substitute a lower-grade nut.
