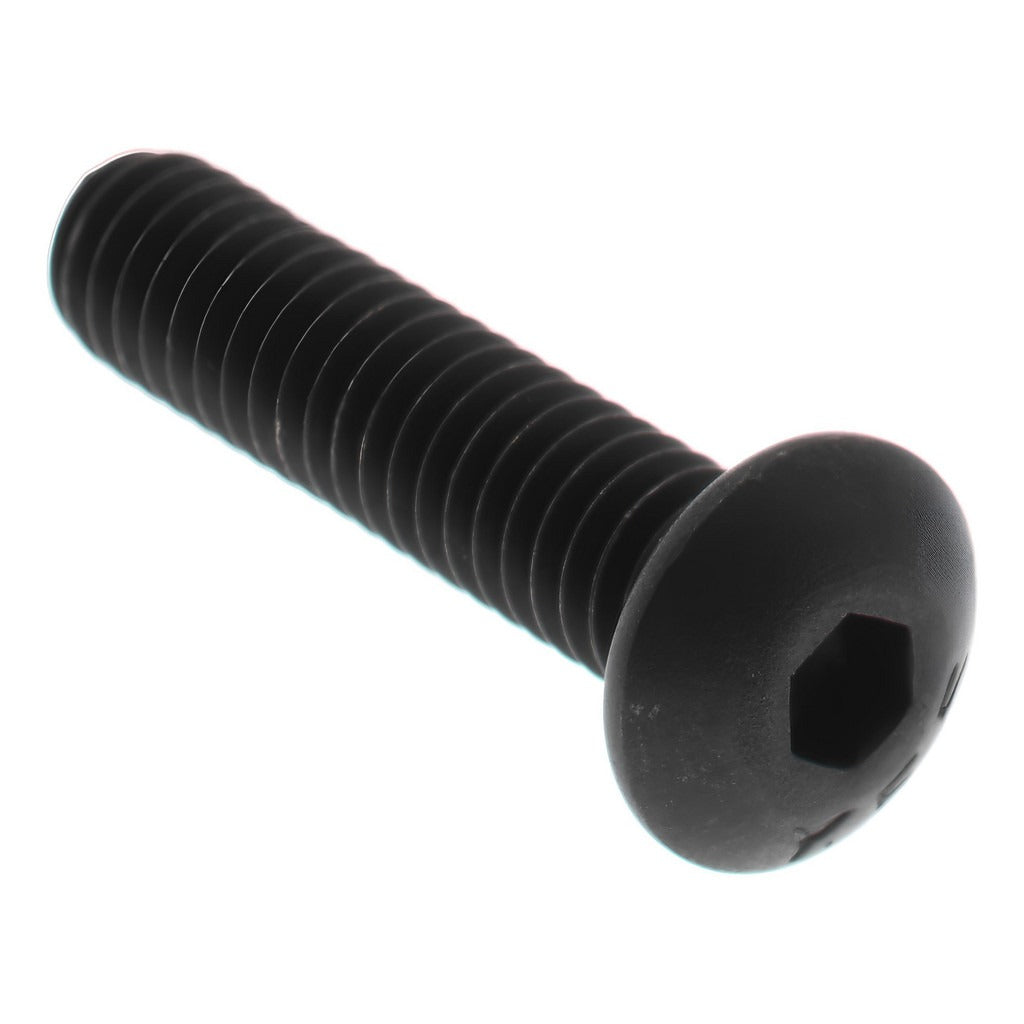

Value Collection 201046PR Button Socket Cap Screw 8-32

Product Description

The VALUE COLLECTION 201046PR is a fully threaded button socket cap screw designed for applications requiring a low-profile head and strong clamping force. Built from alloy steel with a black oxide finish, this fastener provides corrosion resistance and a clean appearance. It features a 3/32-inch hex socket drive and conforms to ANSI/ASME B18.3 and ASTM F835 standards. Thread size is 8-32 UNC with a 3/4-inch length under the head, a head height of 0.087 inches, and a thread fit class of 3A. Hardness is rated at 36 to 43 HRC. This screw is installed by machinists, fabricators, maintenance technicians, and industrial assembly professionals.

The 201046PR is suited for general mechanical assembly, machine guarding, enclosure fabrication, and light structural applications where a rounded button head is preferred over a standard socket head. The low-profile button head sits flush to sub-flush in many applications, making it a practical choice in confined assemblies or where exposed fastener heads must clear adjacent components. Right-hand thread direction is standard. This fastener is sold individually but requires a minimum order quantity of 100 pieces.

Key Features

• 8-32 UNC fully threaded, right-hand thread, thread fit class 3A
• 3/4-inch length under head with low-profile button head at 0.087 inches tall
• 3/32-inch hex socket drive for standard Allen key or bit installation
• Alloy steel construction with hardness of 36 to 43 HRC
• Black oxide finish for mild corrosion resistance and reduced light reflection
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 8-32 UNC button socket cap screw suitable for use in any tapped hole or assembly conforming to ANSI/ASME B18.3 specifications for this thread size and head style.

Installation Notes

Install using a 3/32-inch hex key or socket bit driver. Ensure mating threads are clean and free of debris before installation. Do not exceed the torque capacity appropriate for the 8-32 thread size and hardness grade of the mating material. Always verify thread engagement depth is adequate for the load requirements of the application before final assembly.
