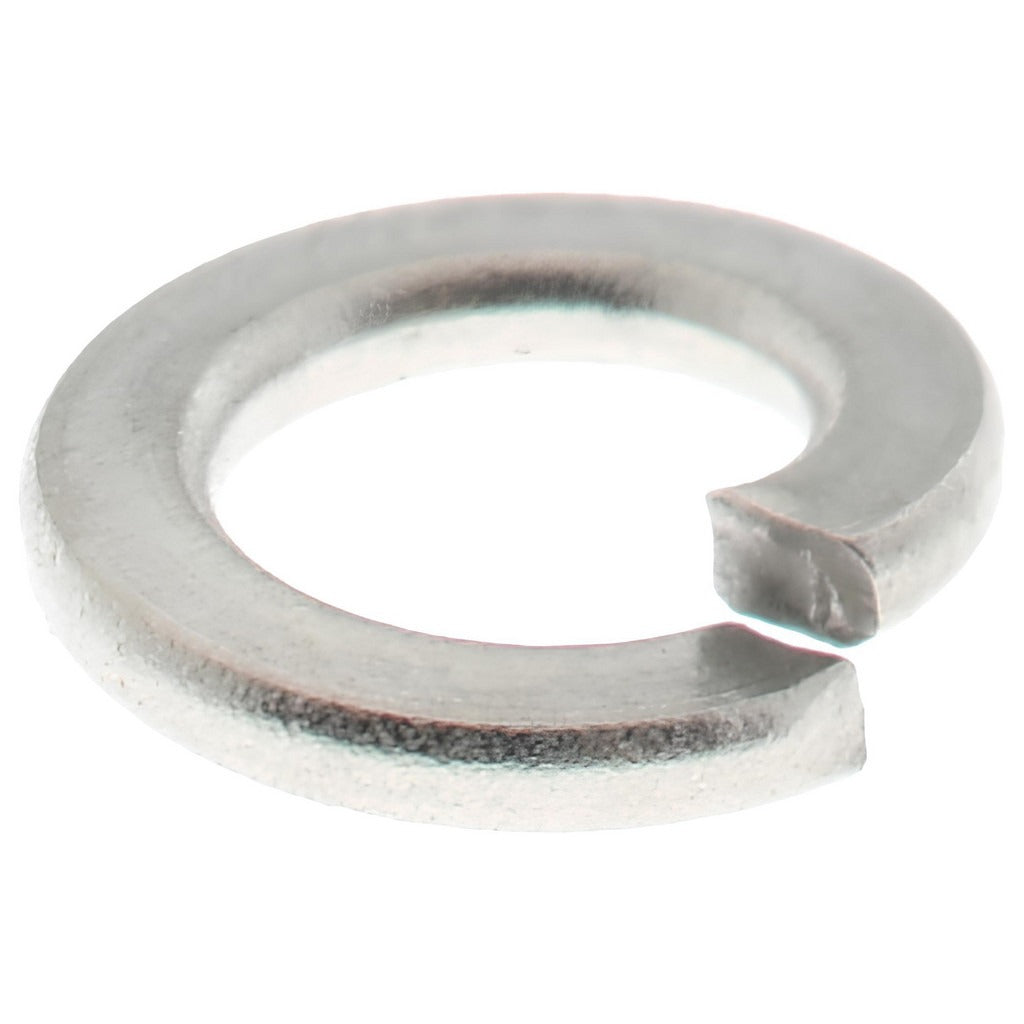

Value Collection 2-L-6 Split Lock Washer 316 Ss No. 6

Product Description

The VALUE COLLECTION 2-L-6 is a No. 6 screw split lock washer manufactured from 316 stainless steel with a bright, uncoated finish. Split lock washers create tension under a fastener head or nut, resisting loosening caused by vibration or dynamic loads. This washer measures 0.141 to 0.148 inches inside diameter, 0.25 inches outside diameter, and 0.031 inches thick. The 316 stainless steel grade provides strong corrosion resistance in wet, chemical, and marine environments. Hardness is rated at 35 to 43 HRC. It conforms to ASME B18.21.1 and SAE J405 standards. Plumbers, electricians, HVAC technicians, and general trade professionals use these washers in panel, enclosure, and equipment fastening applications.

This washer is suited for use with No. 6 screws in residential and light commercial installations where vibration resistance and corrosion resistance are required. Typical applications include electrical enclosures, control panels, HVAC equipment cabinets, plumbing fixtures, and marine or coastal environments where standard steel hardware would corrode. The uncoated bright finish is appropriate for use in applications where a low-profile, non-treated fastener component is specified. Minimum order quantity is 100 pieces per order.

Key Features

• 316 stainless steel construction for superior corrosion resistance in wet and chemical environments
• Split lock design resists fastener loosening under vibration and dynamic loading
• Inside diameter 0.141 to 0.148 inches, outside diameter 0.25 inches, thickness 0.031 inches
• Hardness rated 35 to 43 HRC for reliable clamping force retention
• Bright, uncoated finish with no added plating or coating
• Conforms to ASME B18.21.1 and SAE J405 fastener standards

Compatibility

Designed for use with No. 6 machine screws in standard inch-measurement fastening applications per ASME B18.21.1.

Installation Notes

Power down or de-energize any equipment before servicing fastened assemblies in electrical or HVAC applications. Place the split lock washer between the fastener head or nut and the mating surface, with the split gap oriented to bite into both surfaces as the fastener is tightened. Use appropriate hand tools or torque equipment as specified by the equipment manufacturer for the assembly being serviced. Follow applicable codes including NEC or local mechanical codes where fastener specifications are governed.
