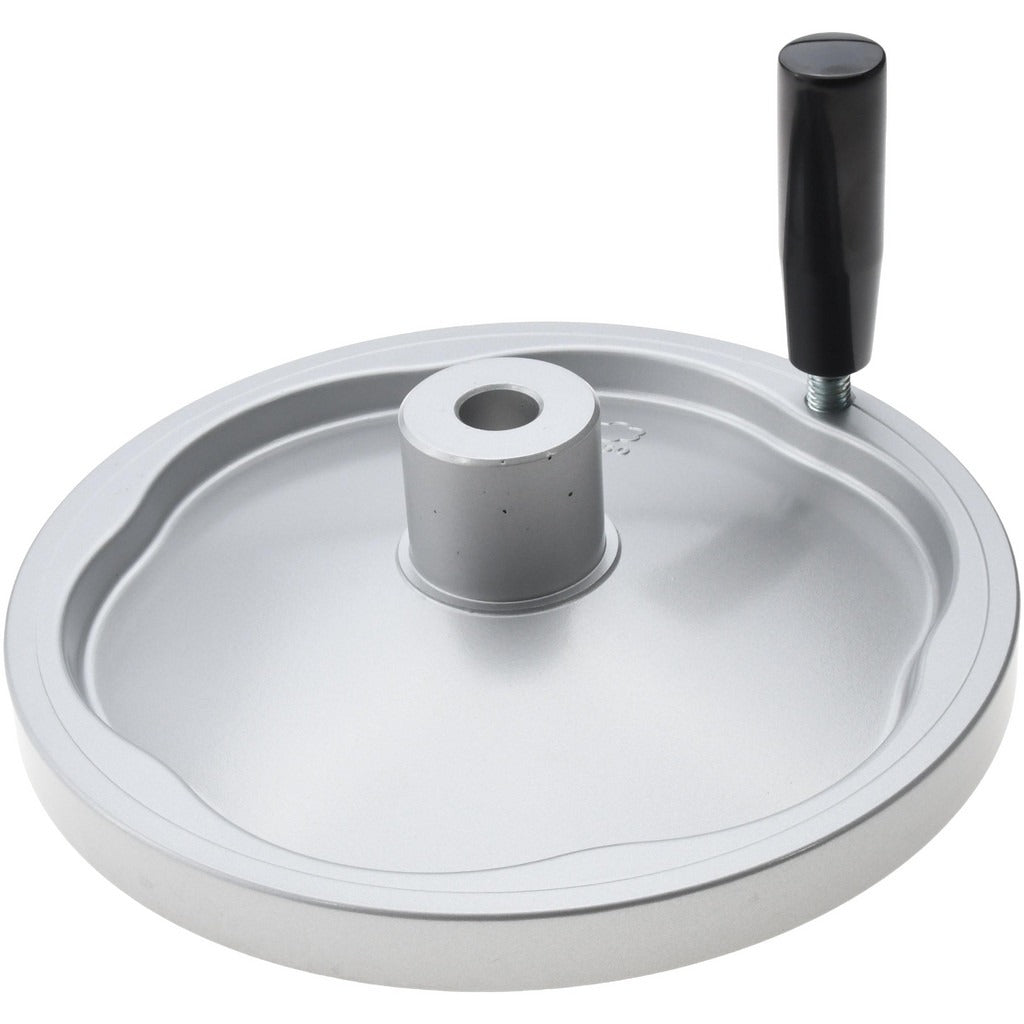

Value Collection 1ADHDW-1044P-G Aluminum Handwheel 9.84in

Product Description

The VALUE COLLECTION 1ADHDW-1044P-G is an aluminum handwheel with a revolving handle, designed for manual valve and equipment operation in industrial, commercial, and trade service applications. The wheel measures 9.84 inches in diameter and accepts a 0.75 inch threaded bore, making it compatible with standard threaded shafts and stems. The revolving handle spans 3.54 inches, allowing operators to apply smooth, continuous torque without repositioning their grip. This handwheel is a direct-fit replacement or upgrade component installed by pipefitters, millwrights, plumbers, and HVAC technicians on gate valves, ball valves, and manual control assemblies.

This handwheel is suited for residential and commercial mechanical rooms, industrial piping systems, and process equipment where manual valve actuation is required. Its aluminum construction keeps weight low while providing corrosion resistance in typical indoor service environments. The 1.89 inch hub diameter and 0.75 inch threaded hole diameter are standard dimensions that align with common valve stem and shaft configurations across a wide range of equipment types.

Key Features

• 9.84 inch outer diameter provides substantial leverage for operating valves under load
• Revolving handle allows continuous rotation without regripping
• Aluminum construction offers a balance of light weight and corrosion resistance
• 0.75 inch threaded bore fits standard valve stems and threaded shafts
• 1.89 inch hub diameter suits common valve bonnet configurations
• 3.54 inch handle length delivers comfortable grip and extended torque reach

Compatibility

Designed as a standard replacement or add-on handwheel for manual valves and equipment requiring a 0.75 inch threaded shaft interface and a 9.84 inch diameter wheel.

Installation Notes

Installation is typically performed by pipefitters, plumbers, or maintenance technicians. Shut off and depressurize the associated valve or system before removing or installing the handwheel. Ensure the shaft thread specification matches the 0.75 inch bore before mounting. Secure the handwheel according to the valve or equipment manufacturer torque guidance and verify smooth rotation before returning the system to service.
