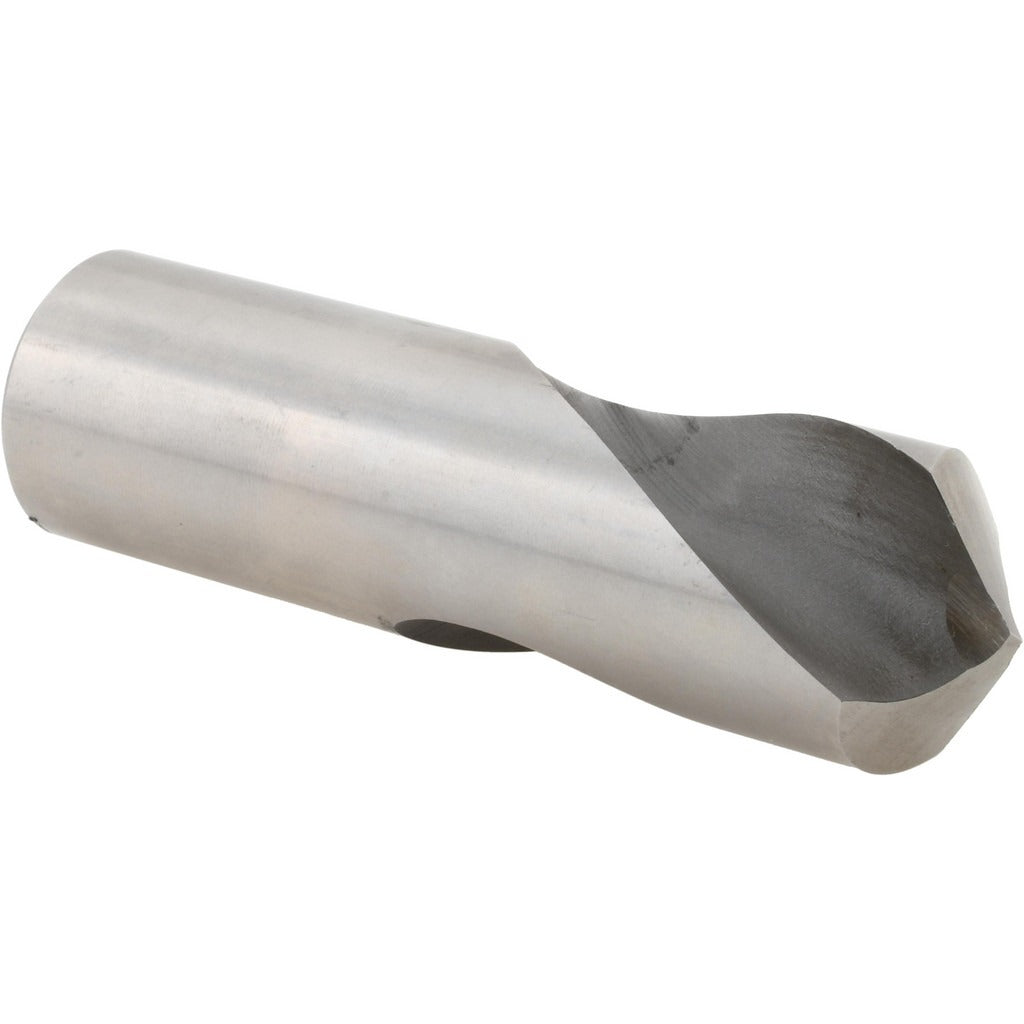

Value Collection 19442961014000S Spotting Drill 1-1/4in Hss

Product Description

The VALUE COLLECTION 19442961014000S is a single-ended spotting drill designed to create accurate center points and chamfered lead holes for follow-on twist drills, reamers, or boring tools. Built from high-speed steel with a bright, uncoated finish, this tool handles general-purpose spotting operations on a wide range of common workpiece materials. It measures 1.25 inches in cutting diameter, carries a 118-degree drill point angle, and runs a right-hand cutting direction. The 4-inch overall length and straight cylindrical shank make it compatible with standard drill chucks and collet holders used in machine shops and maintenance environments. Machinists, tool and die technicians, and maintenance machinists are the primary users.

This spotting drill is suited for general-purpose spotting and centering applications on drill presses, milling machines, and machining centers in both production and job-shop settings. It is intended for use on steel, cast iron, aluminum, and similar materials where a precise entry point is required before drilling to full depth. The 2-inch flute length provides adequate chip clearance for shallow spotting passes, and the spiral flute geometry promotes consistent chip evacuation during the operation.

Key Features

• 1.25-inch cutting diameter with matching 1.25-inch straight cylindrical shank for direct chuck mounting
• 118-degree drill point angle for general-purpose spotting on common metals
• High-speed steel construction provides durability across a broad range of workpiece materials
• Bright, uncoated finish allows easy visual inspection of cutting edge condition
• 2-inch spiral flute length promotes chip clearance during shallow spotting cuts
• Right-hand cutting direction for use in standard forward-rotation setups

Compatibility

Designed as a general-purpose spotting drill for use in standard drill chucks and collet holders accepting a 1.25-inch straight cylindrical shank, suitable for drill presses, milling machines, and CNC machining centers.

Installation Notes

Installation and use should be performed by a qualified machinist or toolroom technician. Secure the straight shank firmly in a properly sized drill chuck or collet before operation, and verify runout is within acceptable limits for the application. Power down and lock out the machine before inserting or removing the tool. Do not exceed the recommended feed and speed parameters for the workpiece material and machine setup.
