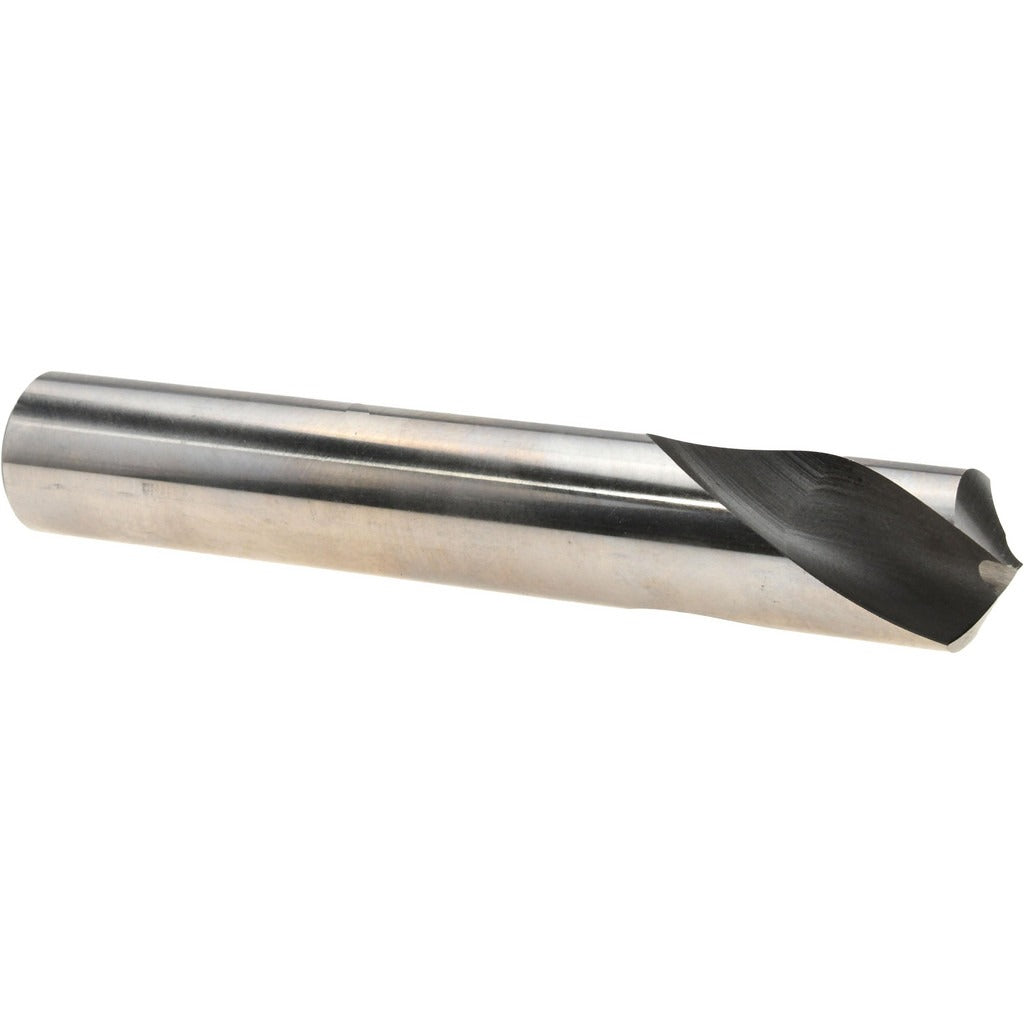

Value Collection 1944296100000Z6 Spotting Drill 1in Hss

Product Description

The VALUE COLLECTION 1944296100000Z6 is a single-ended spotting drill designed to accurately locate and start holes before full-depth drilling operations. Built from high-speed steel with a bright, uncoated finish, this drill features a 120-degree point angle and a 1-inch cutting diameter. The 2-flute spiral flute design provides clean chip evacuation and consistent centering performance. With a 6-inch overall length and a straight cylindrical shank, it is suited for use in drill presses, CNC machining centers, and manual milling setups across metalworking and general machining environments. Machinists and tool-and-die professionals are the primary installers and operators of this tool.

This spotting drill is intended for general-purpose spotting and center-locating applications in machine shops, production facilities, and maintenance environments. It is compatible with standard straight-shank toolholders and drill chucks that accept a 1-inch shank diameter. The right-hand cutting direction and 120-degree included angle make it suitable for spotting pilot holes in steel, aluminum, cast iron, and similar materials prior to twist or indexable drilling.

Key Features

• 120-degree point angle for accurate hole location and clean spot faces
• 1-inch cutting diameter with matching 1-inch straight cylindrical shank
• High-speed steel construction for durability across a range of work materials
• Bright, uncoated finish suitable for general-purpose machining applications
• 2-flute spiral geometry promotes efficient chip clearance
• 6-inch overall length with 2.25-inch flute length for reach flexibility

Compatibility

Designed as a general-purpose spotting drill compatible with standard drill chucks and straight-shank toolholders accepting a 1-inch shank diameter in drill press, lathe, and CNC milling setups.

Installation Notes

This tool is installed and operated by machinists and CNC operators in machine shop environments. Ensure the spindle is fully stopped and the machine is powered down before changing or securing the tool in the chuck or toolholder. Use appropriate workholding and clamp the workpiece securely before starting the spotting operation. Follow the machine manufacturer and applicable shop safety guidelines for speeds and feeds appropriate to the work material.
