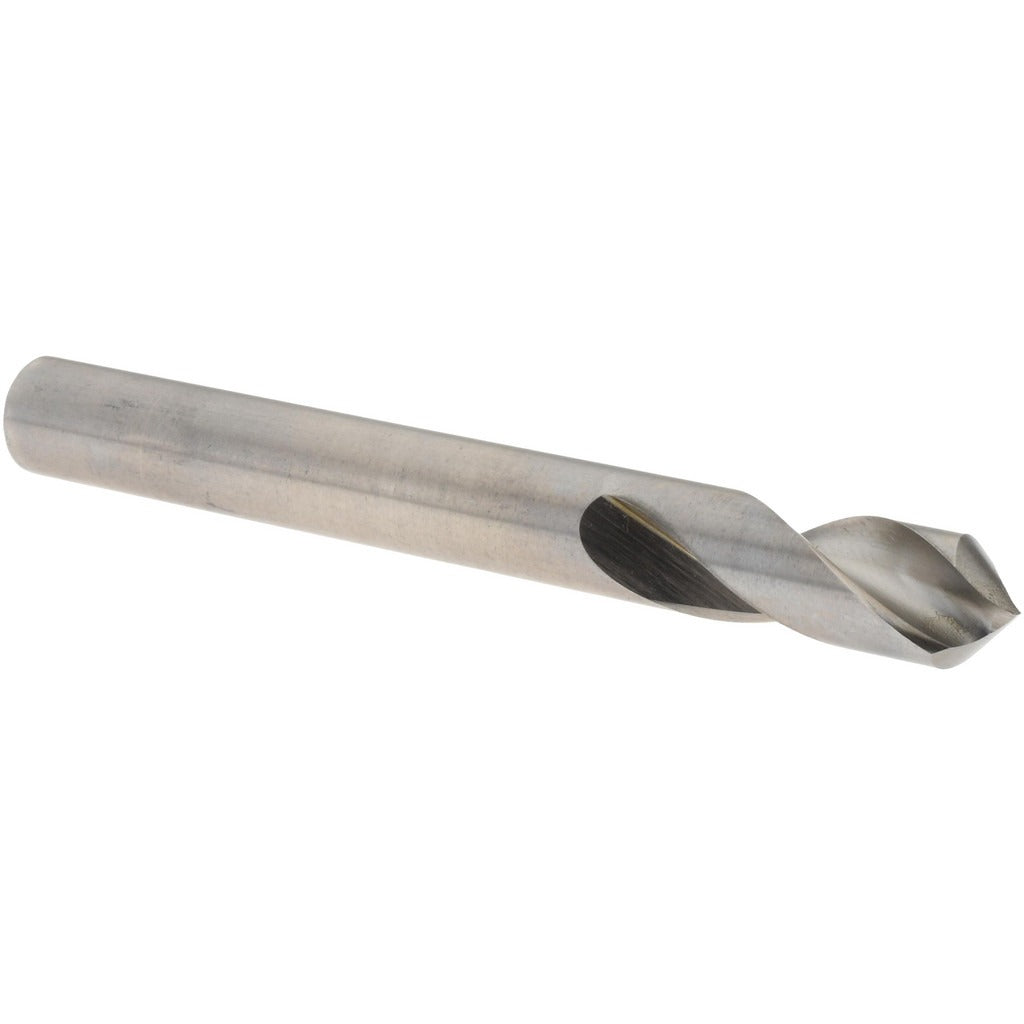

Value Collection 1944296003800X3 Spotting Drill 3/8in Hss

Product Description

The VALUE COLLECTION 1944296003800X3 is a high-speed steel spotting drill designed to create accurate, centered starter holes before full-depth drilling operations. With a 90-degree point angle and a 0.375-inch cutting diameter, this tool establishes a precise seat for twist drills, reducing wander and improving hole location accuracy. The bright, uncoated finish suits general-purpose use in a wide range of common workpiece materials. At 3.125 inches overall length with a 1.125-inch flute length, it is well-proportioned for use in drill presses, CNC machining centers, and manual milling setups. Machinists, tool-and-die workers, and fabrication professionals install and operate this type of tooling.

This spotting drill is intended for general-purpose metal removal applications where precise hole positioning is required prior to standard drilling. The straight cylindrical shank and compact overall length make it compatible with standard drill chucks and collet holders found on vertical machining centers, knee mills, and drill presses. Right-hand cutting direction matches conventional spindle rotation. The two-flute spiral design clears chips efficiently during the spotting pass and minimizes heat buildup at the contact point.

Key Features

• 90-degree point angle for accurate drill-point seating and reduced runout on follow-up operations
• High-speed steel construction provides durability across a broad range of common metals and plastics
• Bright, uncoated finish allows visual inspection of cutting edges and suits dry or lightly lubricated cutting
• Two-flute spiral geometry promotes chip evacuation during spotting passes
• Straight cylindrical shank fits standard drill chucks and collet systems without additional adapters
• Single-ended, right-hand cut configuration for use in conventionally rotating spindles

Compatibility

Designed as a general-purpose spotting drill for use in standard drill chucks and collet holders accepting a 0.375-inch straight cylindrical shank, suitable for drill presses, CNC machining centers, and manual milling machines.

Installation Notes

Installation and operation should be performed by qualified machinists or tooling technicians following applicable shop safety procedures. Ensure the machine spindle is fully stopped and power is locked out before mounting or changing tooling. Secure the shank firmly in the chuck or collet to the appropriate clamping torque for the holder type, referencing the toolholder manufacturer's guidelines. Confirm correct spindle rotation direction before initiating a cut.
