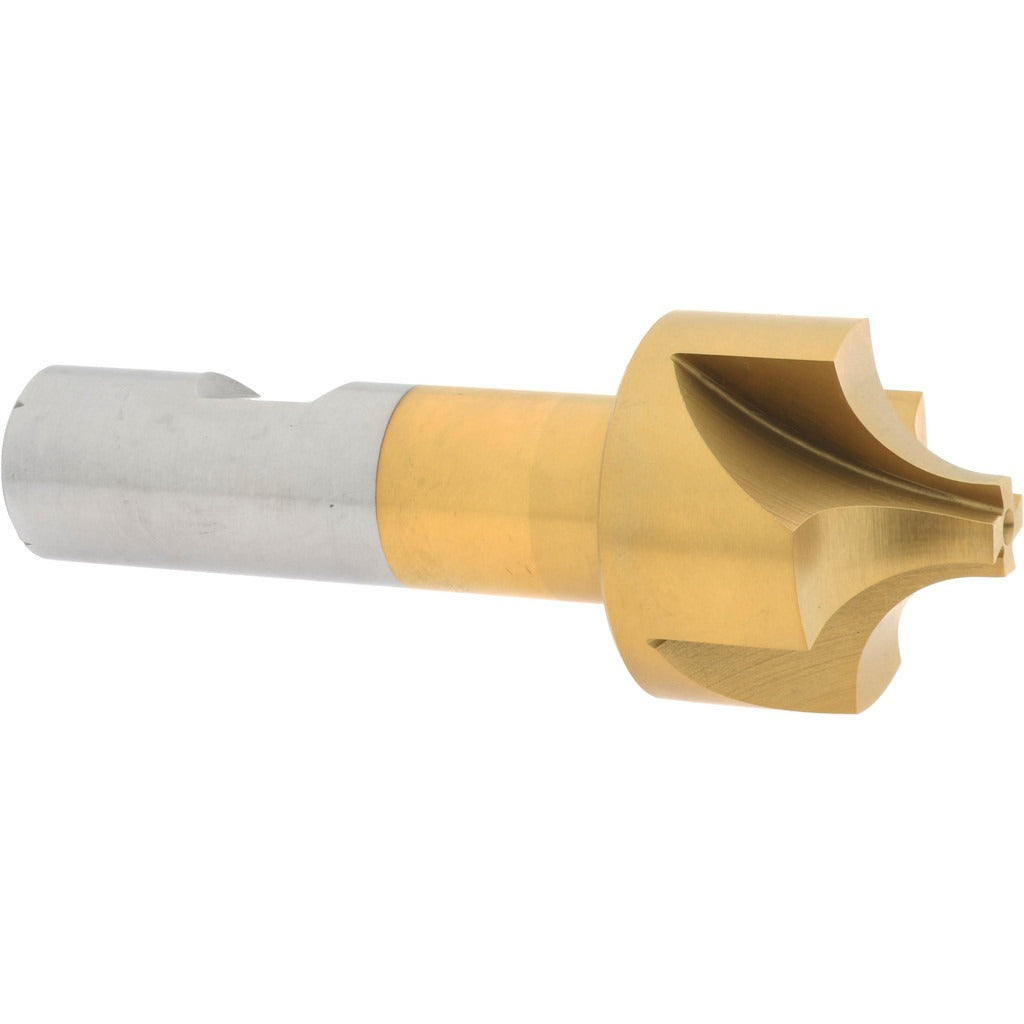

Value Collection 183-6825 Corner Rounding End Mill

Product Description

The VALUE COLLECTION 183-6825 is a single-end corner rounding end mill designed to produce smooth, consistent radius profiles on workpiece edges. Built from M2 high speed steel and finished with a titanium nitride (TiN) coating, this tool delivers improved surface hardness and wear resistance compared to uncoated HSS tooling. It carries a 7/16 inch radius and a 1-3/8 inch mill diameter with 4 flutes, making it well suited for medium-to-heavy material removal in radius-profiling operations. A 3/4 inch shank diameter provides rigid coupling to standard end mill holders and collet chucks. Licensed machinists and toolroom operators are the primary users of this tool.

This end mill is used in vertical milling machines, knee mills, and CNC machining centers for edge-rounding operations on ferrous and non-ferrous workpieces. Typical applications include breaking sharp corners on machined components, creating consistent radius blends on mold details, fixture plates, and structural parts. The right-hand cutting and right-hand flute direction suit conventional milling setups. This is a single-end tool, meaning all cutting geometry is concentrated at one end for focused radius profiling work.

Key Features

• 7/16 inch radius profile for precise, repeatable corner rounding
• M2 high speed steel construction for toughness and heat resistance
• Titanium nitride (TiN) coating increases surface hardness and extends tool life
• 4-flute geometry balances chip evacuation with surface finish quality
• 3/4 inch shank diameter fits standard end mill holders and collet chucks
• Right-hand cut, right-hand flute, single-end configuration

Compatibility

Designed for use in standard end mill holders and collet chucks accepting a 3/4 inch shank, compatible with vertical knee mills and CNC milling centers running right-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully within the holder to the recommended minimum engagement depth before tightening. Power down and lock out the machine spindle before changing tooling. Inspect the collet and holder bore for wear or debris prior to seating the tool, and verify runout with a dial indicator before beginning a production run.
