Value Collection 183-6072 Corner Rounding End Mill 5/8 in

Product Description

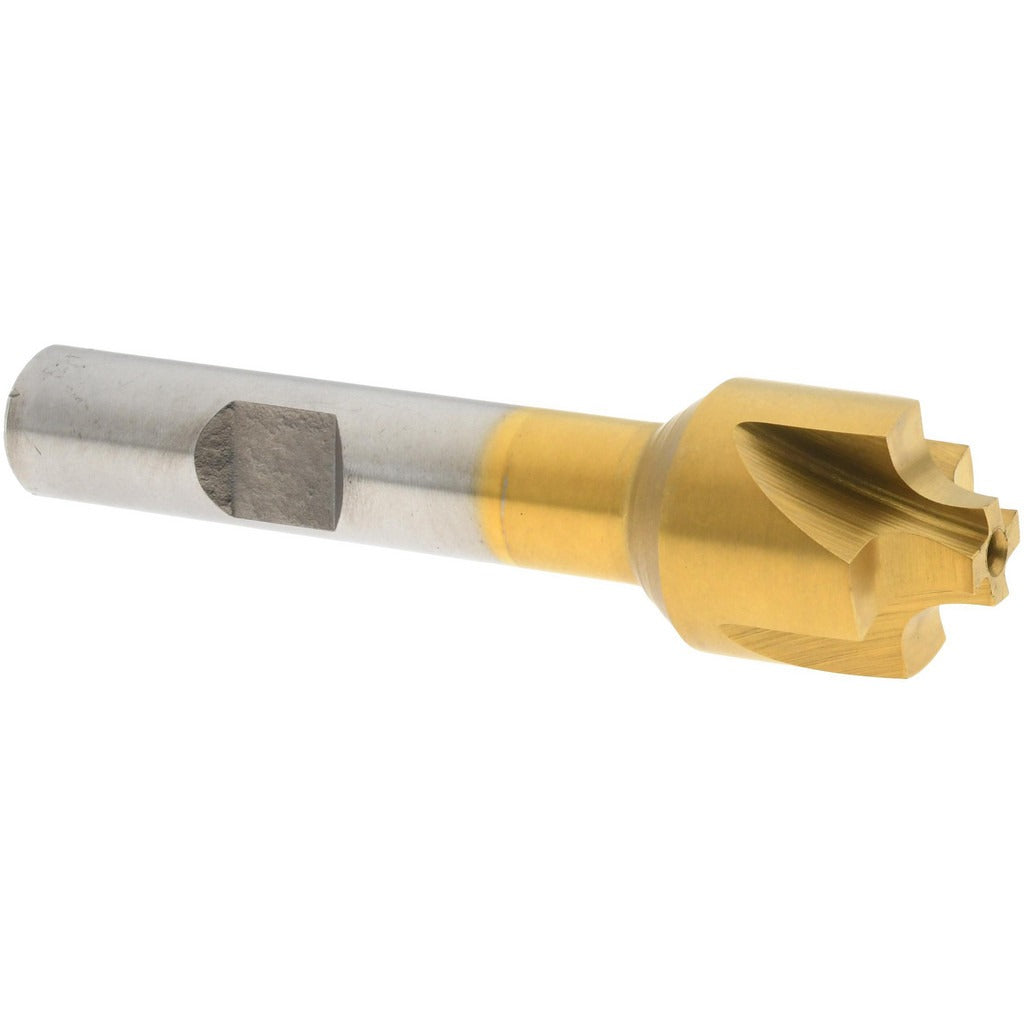

The VALUE COLLECTION 183-6072 is a single-end corner rounding end mill designed to machine precise convex radii on workpiece edges. Built from M2 high speed steel and coated with titanium nitride (TiN), it delivers extended tool life and reduced friction during cutting. The mill measures 5/8 inch in diameter with a 7/64 inch corner radius and seats on a 3/8 inch shank. Its 4-flute, right-hand cutting and right-hand flute configuration suits general-purpose corner rounding operations on steel, aluminum, and similar machinable materials. Machinists and tooling technicians install this tool in vertical milling machines and CNC machining centers.

This end mill is suited for producing consistent edge radii on parts in job shops, production machining environments, and toolroom applications. It is appropriate for use on mild steels, alloy steels, aluminum, and non-ferrous metals where a clean, repeatable convex corner profile is required. The single-end design makes it a straightforward drop-in for standard end mill holders or collet-style tooling systems accepting a 3/8 inch shank.

Key Features

• M2 high speed steel construction for strength and wear resistance across common machinable materials
• Titanium nitride (TiN) coating reduces friction and extends cutting edge life compared to uncoated HSS
• 7/64 inch corner radius produces a consistent convex edge profile in a single pass
• 4-flute geometry improves surface finish and chip evacuation relative to 2-flute designs
• Right-hand cut and right-hand helix — compatible with standard spindle rotation on most mills and machining centers
• Single-end design with 3/8 inch shank fits standard end mill holders and collet chucks

Compatibility

Designed as a standard corner rounding end mill for use in vertical mills and CNC machining centers equipped with tooling that accepts a 3/8 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the 3/8 inch shank fully in a clean, correctly sized collet or end mill holder and torque the drawbar or set screw to the machine manufacturer's specification. Inspect the cutting edges and coating for chips or damage before each use. Never exceed the recommended speeds and feeds for the workpiece material and tool diameter.
