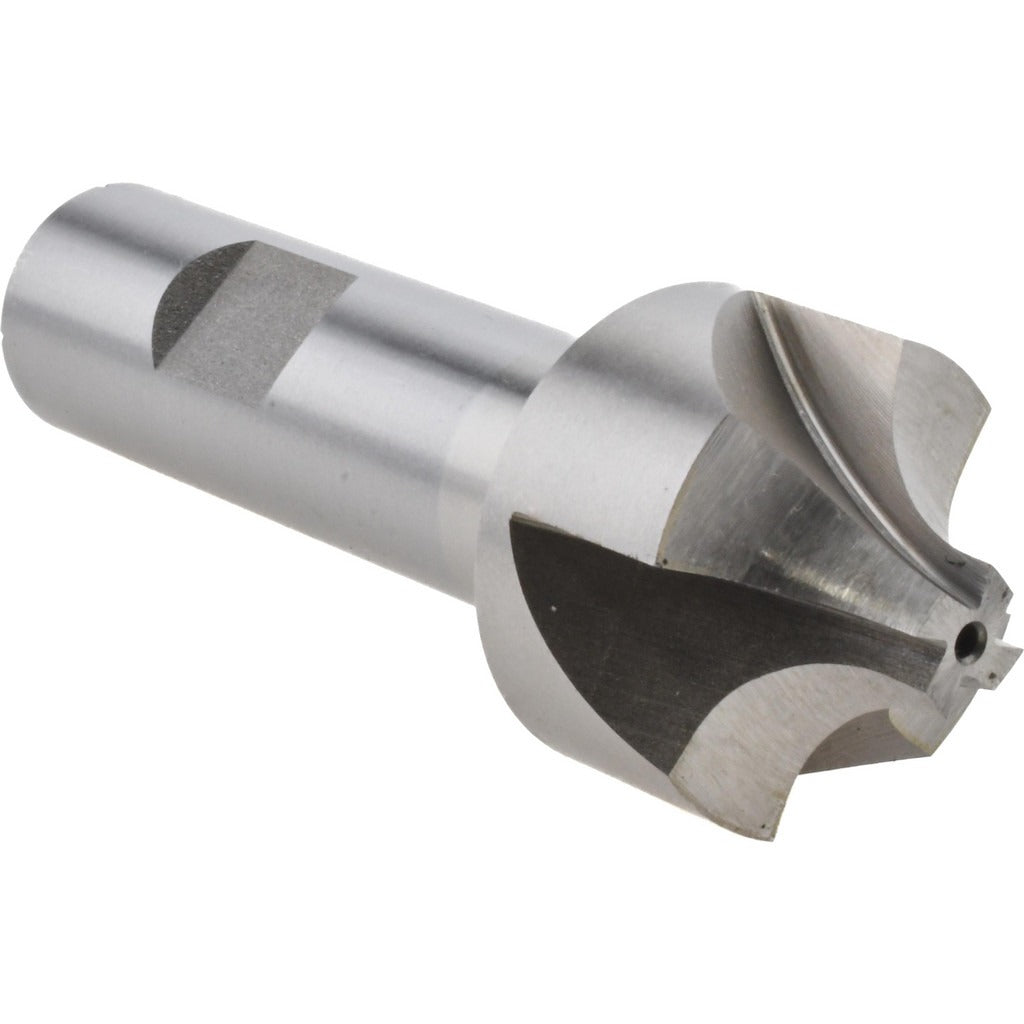

Value Collection 182-6783 Corner Rounding End Mill

Product Description

The VALUE COLLECTION 182-6783 is a single-end corner rounding end mill designed to machine smooth, radiused edges on metal workpieces. It features a 3/8-inch corner radius and a 1-1/4-inch milling diameter, making it suited for medium-to-large radius profiling operations on steel and similar materials. The cutting geometry is right-hand with four flutes and a right-hand flute direction, optimizing chip evacuation and surface finish. Manufactured from M2 high speed steel with a bright uncoated finish, this end mill is a reliable choice for manual mills and CNC machining centers where high-speed steel tooling is preferred over carbide.

This corner rounding end mill is used in general metalworking and fabrication shops for adding consistent radius profiles to part edges, eliminating sharp corners, and improving part aesthetics and safety. It is appropriate for use on steel, aluminum, and other machinable metals in both job shop and production environments. The 3/4-inch shank diameter provides solid gripping in standard end mill holders or collet chucks.

Key Features

• 3/8-inch corner radius for medium-profile edge rounding on metal parts
• 1-1/4-inch milling diameter with 4-flute right-hand cutting geometry
• M2 high speed steel construction for durability across a range of work materials
• Bright/uncoated finish suitable for general-purpose metalworking applications
• 3/4-inch shank diameter fits standard end mill holders and collet systems
• Single-end design for straightforward toolholder mounting

Compatibility

Designed as a general-purpose corner rounding end mill compatible with standard end mill holders and collet chucks accepting a 3/4-inch shank diameter on manual knee mills and CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and powered down before inserting or removing the end mill from the holder. Verify the shank is fully seated and the holder is properly torqued before initiating a cut. Always confirm spindle speed and feed rate are appropriate for the work material and tool diameter before engaging the cutter.
