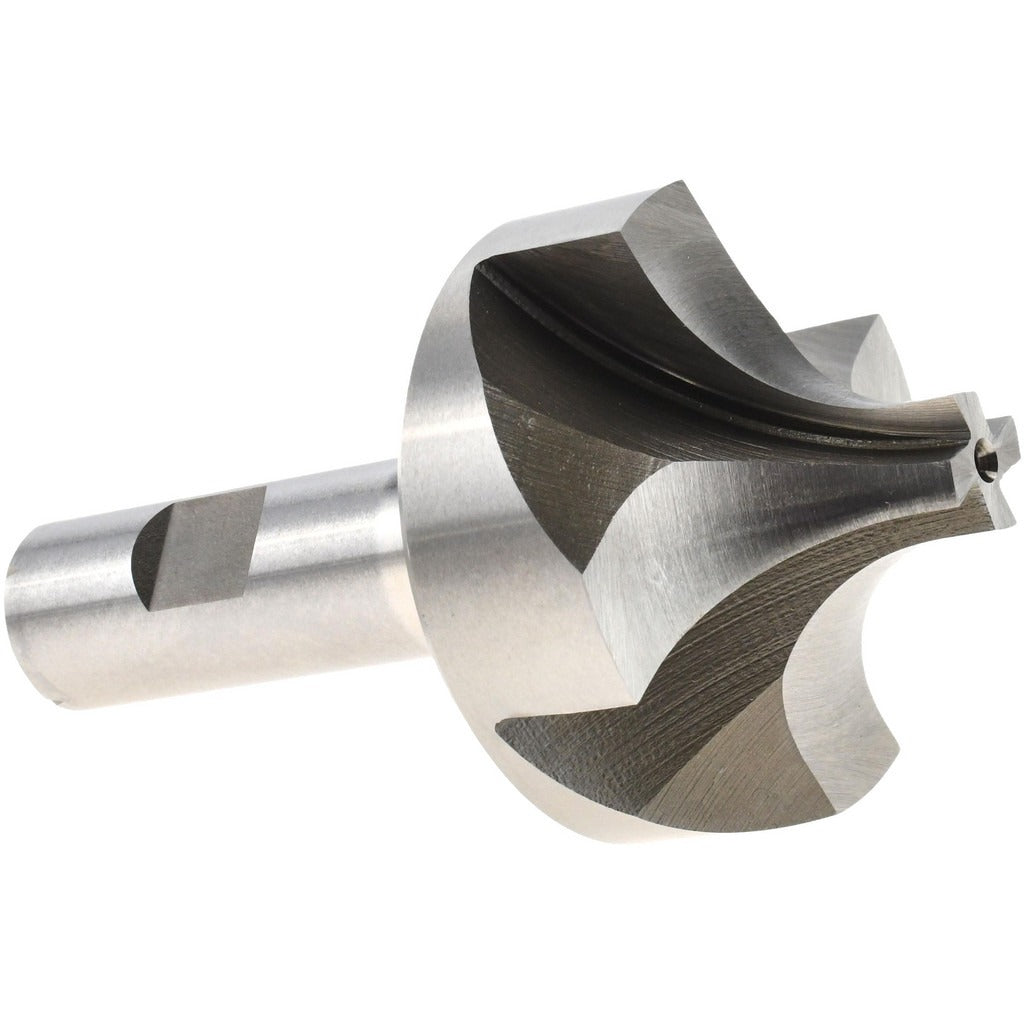

Value Collection 182-6437 Corner Rounding End Mill

Product Description

The Value Collection 182-6437 is a single-end corner rounding end mill designed to machine consistent radius profiles on workpiece edges. Built from M2 high speed steel with a bright, uncoated finish, it is suited for general-purpose milling operations where a controlled 11/16-inch radius edge is required. The 2-1/4-inch mill diameter and 4-flute configuration support stable chip evacuation and smooth surface finishes on a wide range of ferrous and non-ferrous materials. The 3/4-inch shank provides a solid grip in standard end mill holders and collet chucks.

This corner rounding end mill is used in manual and CNC milling setups for producing uniform edge radii on production parts, fixtures, and tooling components. Typical applications include rounding sharp corners on steel plate, aluminum, and similar machinable materials in job shop, toolroom, and light manufacturing environments. Right-hand cutting and right-hand flute direction are standard for conventional and climb milling with compatible spindle rotation.

Key Features

• 11/16-inch radius profile for consistent corner rounding in a single pass
• M2 high speed steel construction for durability across general milling applications
• 4-flute design promotes smooth chip flow and surface finish quality
• Bright, uncoated finish — compatible with cutting fluids and coolant applications
• Single-end configuration with 3/4-inch shank diameter for standard toolholder fitment
• Right-hand cut and right-hand flute direction for conventional spindle use

Compatibility

Designed as an OEM-style replacement or standard toolroom addition for milling machines accepting a 3/4-inch shank end mill in manual or CNC setups.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholder torque and runout specifications. Power down and lock out the machine spindle before changing or seating tooling. Verify shank seating depth and runout with a dial indicator before beginning a cut. Always apply appropriate cutting fluid for the workpiece material to extend tool life.
