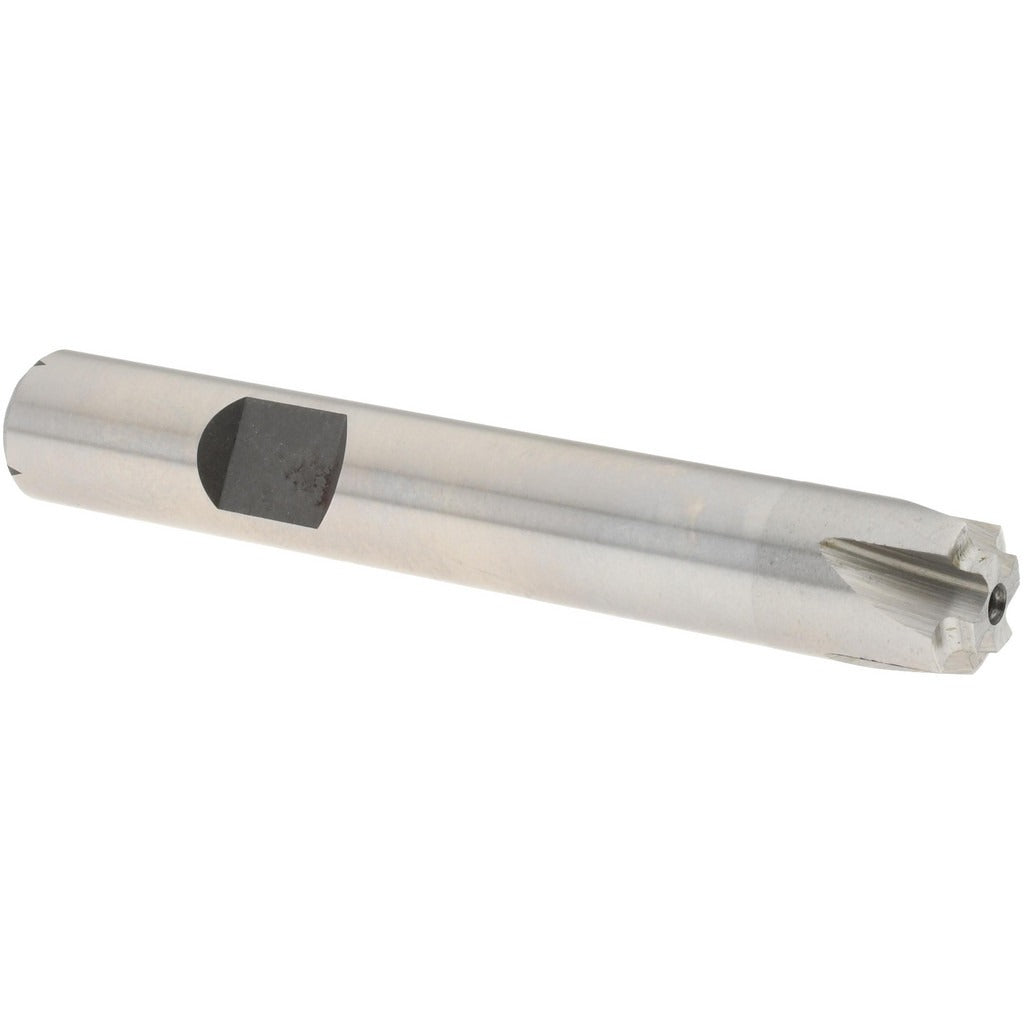

Value Collection 182-6023 Corner Rounding End Mill 3/8 in

Product Description

The VALUE COLLECTION 182-6023 is a single-end corner rounding end mill designed to machine smooth, consistent radius profiles on workpiece edges and corners. Built from M2 high speed steel with a bright, uncoated finish, this tool is suited for general-purpose milling operations where edge-rounding or profile work is required. The 1/32 inch radius produces a fine, controlled corner break across a range of materials. With 4 flutes and a right-hand cutting direction, it delivers clean chip evacuation and smooth surface finishes. Machinists and tool-and-die professionals use this style of end mill in manual mills and CNC machining centers alike.

This end mill is used in job shops, tool rooms, and production environments for rounding external corners on steel, aluminum, and similar machinable materials. The 3/8 inch diameter and matching 3/8 inch shank diameter allow direct installation into standard collet chucks and end mill holders without adapter sleeves. It is well suited to light finishing passes on edges where a precise, small radius is called for rather than a simple chamfer.

Key Features

• M2 high speed steel construction for durability in general-purpose milling applications
• 1/32 inch (0.03 mm) corner radius for precise, fine edge rounding
• 4-flute geometry promotes smooth finish and efficient chip removal
• Right-hand cut and right-hand flute direction for standard spindle operation
• Bright, uncoated finish — compatible with cutting oils and coolants
• Single-end design for straightforward toolholder setup

Compatibility

Designed as a standard replacement or stock corner rounding end mill for use in any milling machine or CNC machining center accepting a 3/8 inch shank end mill holder or collet.

Installation Notes

Installation is performed by a machinist or tooling technician. Power down and lock out the spindle before inserting or removing the tool from the collet or end mill holder. Ensure the shank is fully seated and the collet nut is torqued to the toolholder manufacturer specification. Inspect the cutting edges for chips or damage before each use, and apply an appropriate cutting fluid for the workpiece material.
