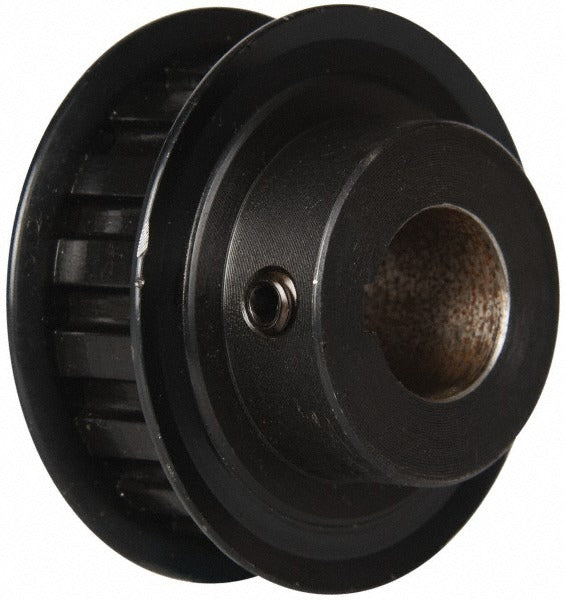

Value Collection 17L0506FSFB3/4 Timing Belt Pulley

Product Description

The VALUE COLLECTION 17L0506FSFB3/4 is a 17-tooth timing belt pulley designed for use with L-series timing belts in mechanical power transmission applications. Constructed from steel cast iron, this pulley features a 3/4-inch inside bore diameter and a 2-inch outside diameter, with a pitch diameter of 2.029 inches and a maximum belt width of 1/2 inch. It is suited for applications requiring precise, synchronous drive performance where belt slippage cannot be tolerated. Mechanical technicians and maintenance professionals typically specify and install this type of component in conveyor systems, machine tool drives, and industrial automation equipment.

This timing belt pulley is intended for use in light-to-medium duty synchronous drive systems that accept L-series (3/8-inch pitch) timing belts up to 1/2 inch wide. It is commonly found in industrial machinery, fabrication equipment, and automated production line assemblies where accurate shaft-to-shaft timing is required. The 3/4-inch bore suits standard shaft sizes found in many fractional and integral horsepower drive configurations.

Key Features

• 17 teeth for synchronous, positive-drive belt engagement with L-series timing belts
• 3/4-inch inside bore diameter fits common shaft sizes in light industrial drives
• 2-inch outside diameter with 2.029-inch pitch diameter for accurate belt meshing
• Accommodates timing belts up to 1/2 inch wide
• Steel cast iron construction provides durability under continuous load conditions

Compatibility

Designed for use with L-series timing belts (3/8-inch pitch) up to 1/2 inch in belt width. Suitable as an OEM-style replacement or direct installation component in synchronous drive assemblies using standard L-series belt and pulley configurations.

Installation Notes

Installation should be performed by a qualified mechanical or maintenance technician. Disconnect and lock out all power sources before servicing any drive assembly. Ensure the shaft diameter matches the 3/4-inch bore and that the mating timing belt pitch and width are compatible before installation. Verify pulley alignment and belt tension according to the equipment manufacturer's drive specifications before returning the system to service.
