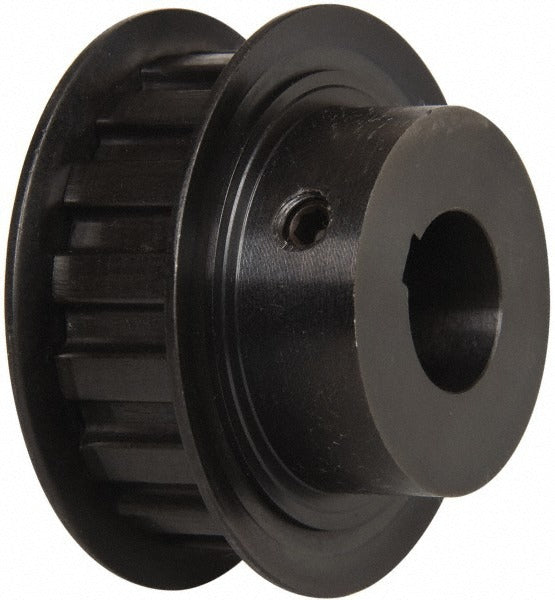

Value Collection 16L0506FSFB5/8 Timing Belt Pulley

Product Description

The VALUE COLLECTION 16L0506FSFB5/8 is a 16-tooth timing belt pulley designed for use with L-series timing belts in mechanical drive applications. The pulley features a 5/8-inch bore and a 1.88-inch outside diameter, with a pitch diameter of 1.91 inches and a 1/2-inch belt width capacity. Constructed from steel cast iron, this pulley delivers the rigidity and wear resistance required in demanding drive system environments. It is suited for maintenance, replacement, and new-build applications where precise synchronous power transmission is needed.

This timing belt pulley is used in synchronous drive systems where accurate speed ratio and positive engagement between belt and pulley are required. Typical installations include conveyor drives, pump drives, and general industrial machinery using L-series (3/8-inch pitch) timing belts. The 5/8-inch bore accommodates standard shaft sizing common in light-to-medium duty industrial and commercial equipment.

Key Features

• 16-tooth profile for positive, slip-free synchronous drive engagement
• 5/8-inch inside bore diameter fits standard shaft sizes
• 1.88-inch outside diameter with 1.91-inch pitch diameter for accurate belt mesh
• Compatible with 1/2-inch wide L-series timing belts
• Steel cast iron construction for rigidity and long service life

Compatibility

Designed for use with L-series timing belts (3/8-inch pitch) at 1/2-inch belt width. Suitable as an OEM-style replacement or new-installation component in synchronous mechanical drive systems using standard L-series belt profiles.

Installation Notes

Installation is typically performed by a qualified millwright or mechanical technician. Disengage and lock out all power to the drive system before removing or installing any pulley. Verify bore-to-shaft fit and ensure proper belt tension and pulley alignment before returning the system to service. Follow applicable ANSI and OSHA machine guarding requirements when working on exposed drive components.
