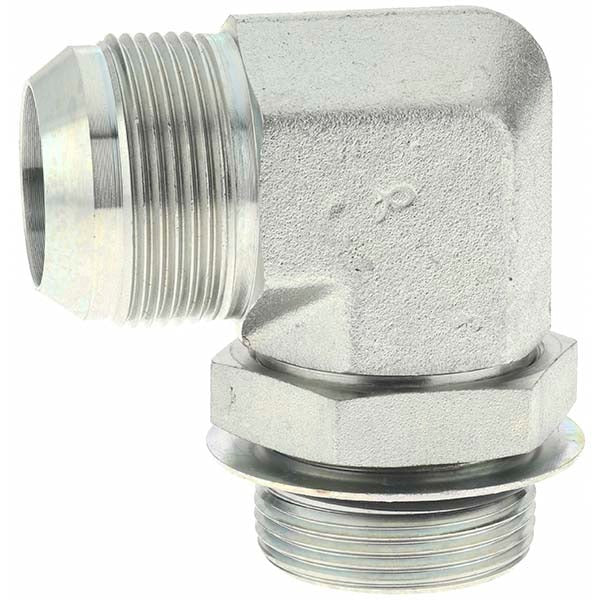

Value Collection 16511 Steel 90 Elbow 1-1/4 in Flare X Orb

Product Description

The VALUE COLLECTION 16511 is a steel 90-degree flared tube elbow designed for high-pressure fluid line connections in hydraulic, pneumatic, and industrial plumbing systems. It features a 37-degree flare angle on the tube end and an O-ring boss (ORB) port on the outlet, allowing a flared tube to transition to a straight-thread ORB fitting in a single component. The tube outside diameter is 1-1/4 inches, and both thread ends are sized at 1-5/8-12. This fitting is typically installed by hydraulic system technicians, industrial plumbers, and fluid power mechanics working on equipment with steel tubing circuits.

This elbow is suited for use in industrial machinery, mobile equipment, and fluid power systems where a 90-degree change of direction is required between a flared steel tube and an ORB-ported component such as a pump, valve, or manifold. The 37-degree flare seating angle is a JIC-standard geometry common in hydraulic and fuel line applications. It ships in a package quantity of one and has a minimum order quantity of one.

Key Features

• 37-degree JIC-style flare seat on the tube end for secure, leak-resistant connection
• O-ring boss (ORB) outlet thread provides a positive seal at the port face
• 1-1/4 inch tube outside diameter accommodates standard large-bore steel tubing
• 1-5/8-12 thread size on both ends for consistent fitting engagement
• Steel construction for durability in high-pressure fluid line service
• 90-degree elbow geometry reduces inline space and routes tubing around obstructions

Compatibility

Designed as an OEM-style replacement or service fitting for industrial and mobile hydraulic systems using 1-1/4 inch OD steel flared tubing with ORB-ported components.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial plumber familiar with flared tube fittings and ORB port standards. Depressurize and drain the fluid circuit completely before removing or installing any fitting. Inspect the flare seat and ORB port for burrs or damage before assembly, and ensure the O-ring is seated correctly in the boss groove before threading. Follow applicable system pressure ratings and relevant industry standards for fluid power connections.
