Value Collection 16509 Steel 90 Elbow 5/8 in Flare X Orb

Product Description

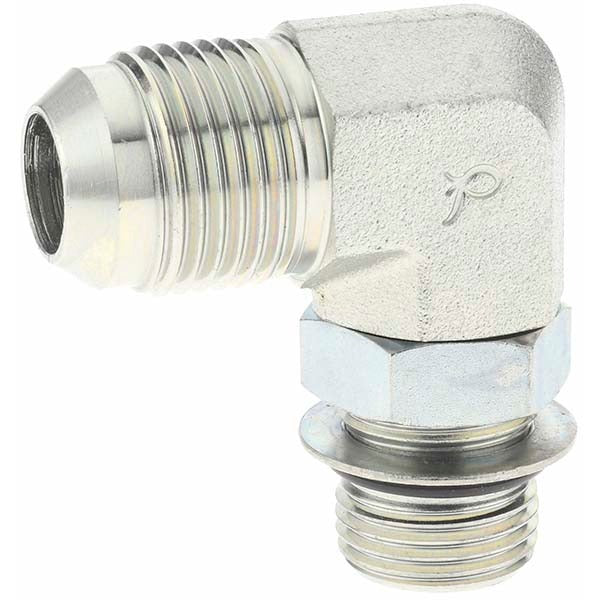

The VALUE COLLECTION 16509 is a steel 90-degree flared tube elbow designed for hydraulic and fluid-transfer line assemblies. It connects a 37-degree flare end to an O-ring boss (ORB) port, making a right-angle turn in the line while maintaining a leak-resistant seat. The fitting accepts tubing with a 5/8-inch outside diameter and carries a thread size of 7/8-14 on the flare end and 3/4-16 on the ORB end. Steel construction provides the strength and pressure tolerance required in hydraulic, refrigeration, and industrial fluid systems. Plumbers, HVAC technicians, and hydraulic system mechanics install this type of fitting during line fabrication and repair work.

This elbow is suited for applications where a fluid or refrigerant line must make a 90-degree direction change and terminate into an O-ring boss port on a valve, manifold, or equipment body. The 37-degree flare seat is a standard angle used across hydraulic and refrigeration tubing systems. It is commonly installed in both light industrial and commercial equipment where steel fittings are required for durability and compatibility with high-pressure fluid lines.

Key Features

• 90-degree elbow body routes tubing at a right angle in tight installations
• 37-degree flare seat on one end provides a positive, leak-resistant metal-to-metal connection
• O-ring boss (ORB) thread on the outlet end seals with an O-ring for a reliable port connection
• 5/8-inch tube outside diameter compatibility suits standard hydraulic and refrigeration line sizes
• Steel construction withstands the mechanical stress and pressure of industrial fluid systems
• Sold in a package quantity of 2, with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid-transfer systems requiring a 5/8-inch OD tube connection with a 37-degree flare-to-ORB interface at a 7/8-14 x 3/4-16 thread size.

Installation Notes
