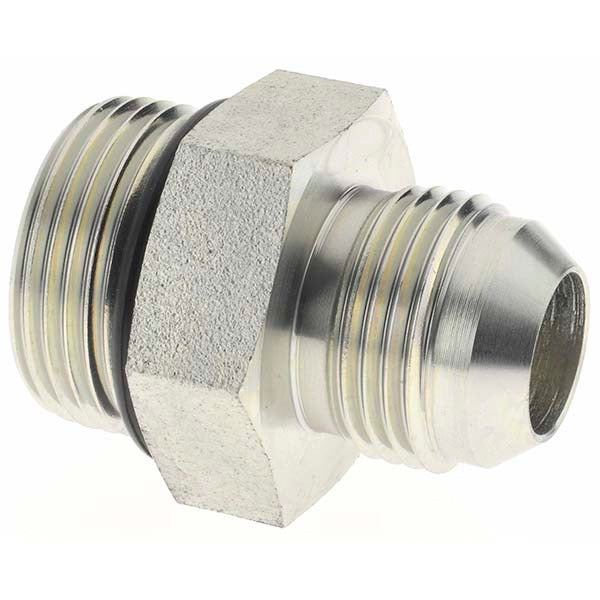

Value Collection 16354 Steel Flared Tube Connector 3/4 in

Product Description

The VALUE COLLECTION 16354 is a steel flared tube connector designed for hydraulic and fluid transfer line connections in industrial and trade plumbing applications. It features a 3/4-inch tube outside diameter and a 37-degree flare seat, which provides a reliable metal-to-metal seal when properly torqued. The thread configuration is 1-1/16-12 on the flare end and 1-5/16-12 on the O-ring boss (ORB) end. This fitting is commonly installed by plumbers, pipefitters, and hydraulic system technicians working on fluid power or process piping systems where leak-free connections are critical.

This connector is suited for use in hydraulic systems, refrigeration lines, and industrial fluid transfer assemblies where a flare-to-ORB transition is required. The ORB end threads into a port boss with an O-ring seated against a flat surface, while the flare end accepts a matching 37-degree flared tube. It is appropriate for both shop fabrication and field repair work on medium-pressure fluid lines. Each package contains 2 connectors.

Key Features

• 37-degree flare seat provides a secure metal-to-metal sealing interface
• Flare x ORB end configuration allows transition between tube flare and O-ring boss port connections
• 3/4-inch tube outside diameter accommodates standard flared tubing
• Thread sizes 1-1/16-12 (flare end) and 1-5/16-12 (ORB end) for precise fitment
• Steel construction for durability in industrial and hydraulic service environments
• Sold in packages of 2 connectors

Compatibility

Designed as a standard flare-to-ORB transition connector for hydraulic and fluid transfer systems using 3/4-inch OD tubing with 37-degree flared ends and O-ring boss port connections.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or hydraulic technician. Depressurize and drain the fluid system completely before removing or installing any fittings. Inspect the flare seat and ORB port surface for nicks or contamination before assembly, and ensure the O-ring is properly seated and lubricated before threading the ORB end into the port. Follow applicable IPC or system manufacturer specifications for assembly procedures.
