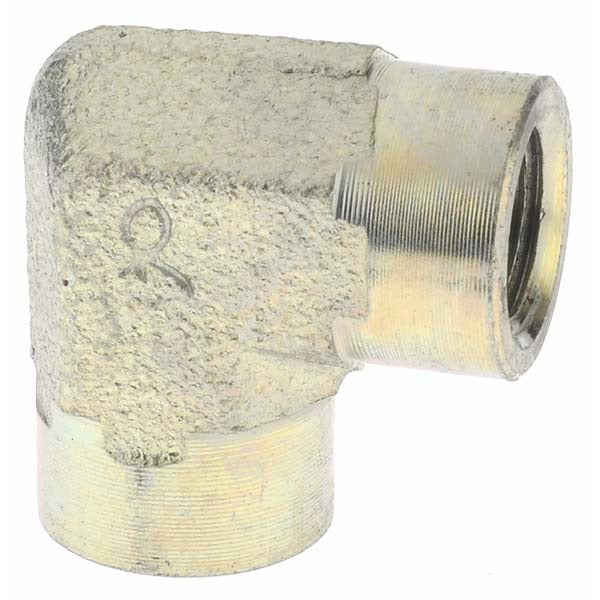

Value Collection 16069 90 Deg Pipe Elbow Fnptf X Fnptf

Product Description

The VALUE COLLECTION 16069 is a 90-degree pipe elbow designed for industrial fluid and hydraulic piping systems. The fitting uses female national pipe taper fuel (FNPTF) connections on both ends, allowing a secure threaded joint on each side of the elbow. With a pressure rating of 6,000 psi, this elbow is built for high-pressure service environments. Licensed plumbers, pipefitters, and industrial maintenance technicians typically specify and install this type of fitting in demanding piping applications where directional changes and leak-free joints are critical.

This elbow is suited for industrial piping installations that require a 90-degree change in direction under high-pressure conditions. The FNPTF x FNPTF configuration accepts standard male NPT threaded pipe on both ends. Typical applications include hydraulic lines, compressed air systems, industrial fluid transfer, and high-pressure process piping found in manufacturing, maintenance, and mechanical utility environments. Each package contains 4 fittings, making it practical for jobs requiring multiple elbows at a single location.

Key Features

• 6,000 psi pressure rating suitable for high-pressure industrial service
• FNPTF x FNPTF connections on both ends for standard male NPT thread engagement
• 90-degree elbow geometry for directional pipe routing changes
• Sold in packages of 4 fittings per unit quantity
• UNSPSC Code 40175305 for procurement system compatibility

Compatibility

Designed as an OEM-style replacement or standard-fit elbow for industrial piping systems using male NPT threaded connections where a 90-degree turn and 6,000 psi pressure rating are required.

Installation Notes

Installation is typically performed by a licensed pipefitter or plumber following applicable codes such as the International Plumbing Code or relevant ASME B31 piping standards. Shut off and depressurize the system completely before removing any existing fittings or installing this elbow. Apply an appropriate thread sealant or PTFE tape rated for the intended service fluid and pressure before threading the fitting onto the mating pipe ends. Do not over-tighten; use a calibrated pipe wrench and follow standard practice for NPT thread engagement depth.
