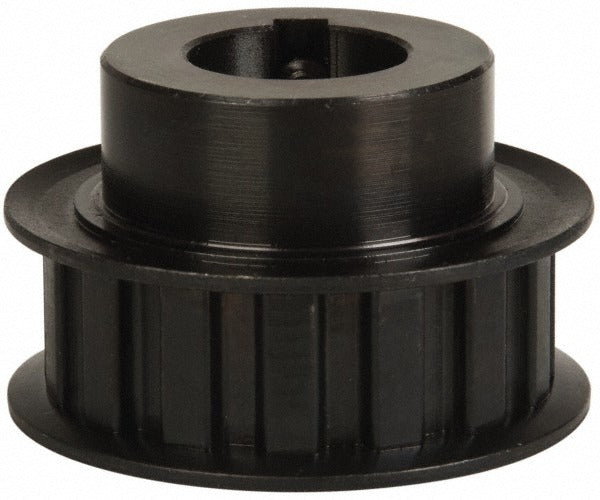

Value Collection 15L0506FSFB3/4 Timing Belt Pulley

Product Description

The VALUE COLLECTION 15L0506FSFB3/4 is a 15-tooth timing belt pulley designed for synchronous drive applications in light industrial and mechanical power transmission systems. The pulley features a 3/4-inch bore and a 1.76-inch outside diameter, making it suitable for compact drive train assemblies. It is compatible with L-series timing belts up to 1/2 inch in width and has a pitch diameter of 1.79 inches. Constructed from steel cast iron, this pulley delivers the rigidity and wear resistance required for continuous-duty conveyor, positioning, and indexing drive setups. Mechanical technicians and maintenance trades install this type of component during new builds and scheduled drive system repairs.

This timing belt pulley is intended for use in precision synchronous belt drive systems where accurate tooth engagement and consistent shaft-to-shaft timing are required. Typical applications include light industrial machinery, automated conveyor lines, CNC positioning stages, and mechanical sub-assemblies that rely on L-series belt standards. The 3/4-inch bore accommodates a common shaft diameter found across a wide range of mechanical drive configurations. Installation is generally performed by mechanical or millwright trades during equipment assembly or preventive maintenance intervals.

Key Features

• 15-tooth profile engineered for precise synchronous belt engagement with L-series timing belts
• 3/4-inch bore diameter fits a widely used shaft size in light industrial drive assemblies
• 1.76-inch outside diameter and 1.79-inch pitch diameter for accurate belt-wrap geometry
• Accepts belt widths up to 1/2 inch, matching standard L-series belt specifications
• Steel cast iron construction provides rigidity and resistance to wear in continuous-duty cycles

Compatibility

Designed for use with L-series synchronous timing belts with a maximum width of 1/2 inch. Suitable as an OEM-style replacement or new-installation component in mechanical power transmission systems using standard L-series belt drive configurations.

Installation Notes

Installation should be performed by a qualified mechanical or millwright technician. Disconnect and lock out all power sources before removing or installing drive components. Verify shaft diameter, keyway dimensions, and belt alignment before finalizing the installation. Consult applicable machinery manufacturer documentation and relevant ANSI or OSHA lockout/tagout standards when servicing drive systems.
