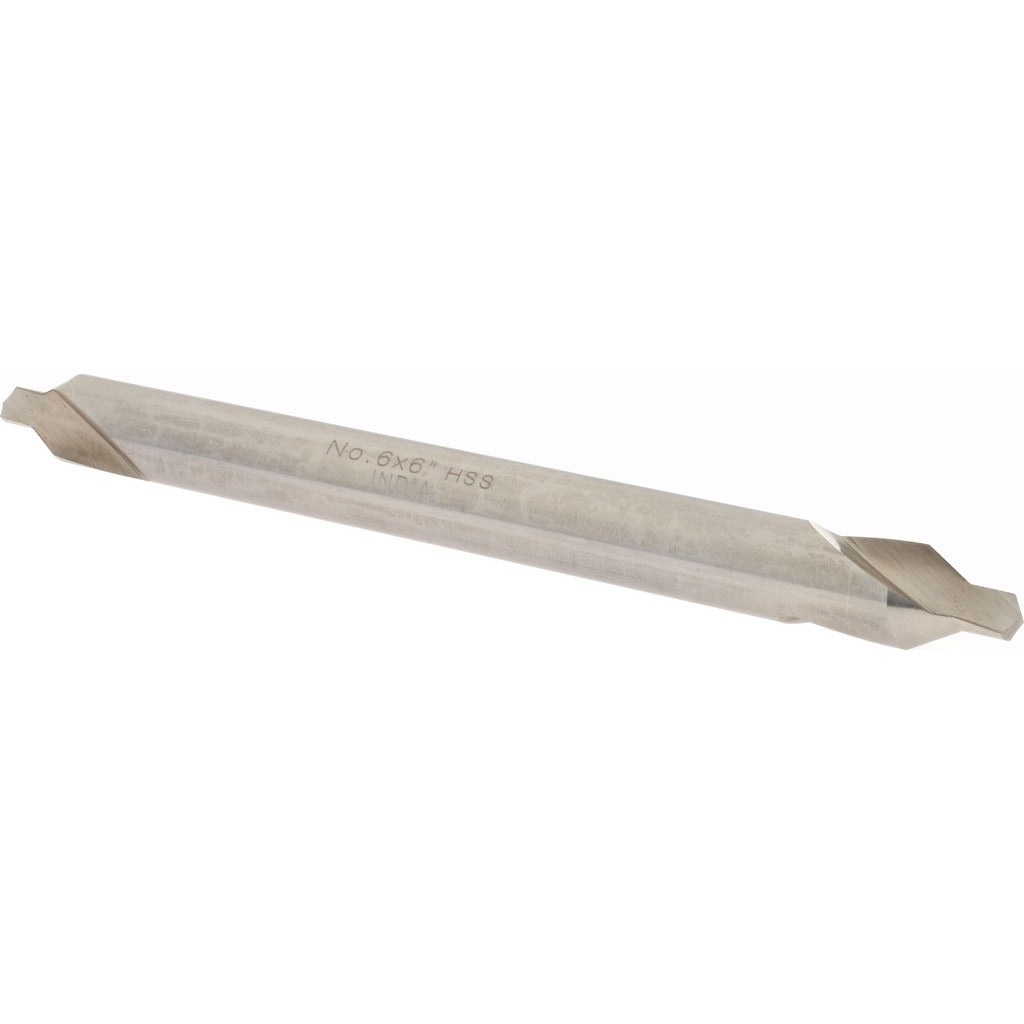

Value Collection 156400006000006 Drill Countersink Size 6

Product Description

The VALUE COLLECTION 156400006000006 is a combination drill and countersink tool designed to drill a pilot hole and create a countersunk seat in a single operation. Built from high-speed steel with a bright, uncoated finish, this tool is suited for metalworking, woodworking, and general fabrication tasks where clean, flush fastener seating is required. It features a 0.5 inch body diameter, a 7/32 inch drill point diameter, a 7/32 inch drill point length, and a 60-degree included angle for standard countersink profiles. At 6 inches overall length, it is classified as a long-length tool, providing added reach in confined or deeper work areas.

This combo drill countersink is intended for use on drill presses, lathes, and hand-held power drills in shop and field environments. It is suited for machinists, fabricators, millwrights, and maintenance technicians working with metal stock or composite materials. The right-hand cut direction and plain cutting edge style make it compatible with standard drill chuck setups. The double-end configuration extends usable tool life by providing two functional ends before replacement is needed.

Key Features

• Combination drill and countersink in a single tool — pilot hole and countersink seat created in one pass
• High-speed steel construction provides wear resistance across ferrous and non-ferrous materials
• 60-degree included angle meets standard countersink geometry for flat-head fasteners
• Double-end design extends tool service life
• Long-length at 6 inches overall for added reach in deep or restricted work areas
• Bright uncoated finish — no coating buildup to affect dimensional accuracy

Compatibility

Designed as an OEM-style replacement or direct addition for standard drill chuck setups requiring a size 6 combo drill countersink with a 0.5 inch body diameter and right-hand cut.

Installation Notes

Installation of this tool is performed by machinists, fabricators, or maintenance technicians using standard drill chucks or collet holders. Secure the tool firmly in the chuck before operation and verify spindle speed is appropriate for the workpiece material. Always wear appropriate eye protection when operating rotary cutting tools. Power down and de-energize all equipment before changing or inspecting the tool.
