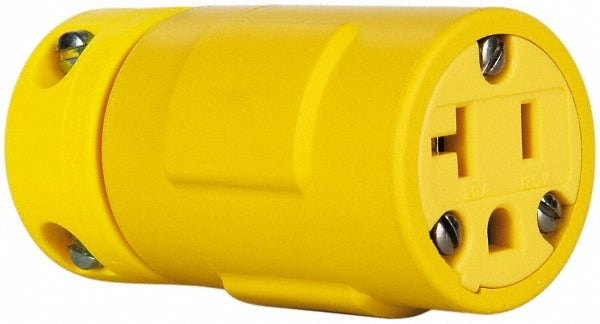

Value Collection 1533 Straight Blade Connector 5-20 20A

Product Description

The VALUE COLLECTION 1533 is an industrial-grade straight blade connector rated for 125 volts AC and 20 amps, built for demanding electrical service applications. The body is constructed from rubber, providing resistance to chemicals, oil, high temperatures, and weathering. With a NEMA 5-20 configuration, 2 poles, and 3 wires in an ungrounded arrangement, this connector is suited for single-phase power distribution in industrial and commercial environments. Licensed electricians and maintenance trades typically install this type of connector where robust environmental resistance is required in addition to reliable current-carrying performance.

This connector is designed for industrial electrical installations where exposure to oils, solvents, extreme temperatures, or outdoor conditions is a factor. The NEMA 5-20 configuration matches standard 20-amp straight-blade receptacles found in industrial panels, equipment hookups, and temporary power setups. Its yellow color aids in quick visual identification on the job site. The ungrounded 2-pole layout is appropriate for specific wiring configurations that do not require a ground path through the connector body.

Key Features

• NEMA 5-20 configuration for standard 20-amp straight-blade receptacle compatibility
• Rubber body rated for chemical, oil, high-temperature, and weather resistance
• 20-amp, 125-volt AC rating for single-phase industrial circuits
• Ungrounded 2-pole, 3-wire design
• Yellow color for visual identification in multi-connector installations
• UL Listed (UL File E10176) and CSA Certified (CSA File LR6837)

Compatibility

Designed for use with NEMA 5-20 straight-blade receptacles in 125-volt AC, 20-amp single-phase industrial and commercial wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements for the applicable circuit type and environment. De-energize and lock out the circuit at the panel before making or breaking any wiring connections. Verify that the existing receptacle configuration matches the NEMA 5-20 blade pattern before installation. Do not exceed the 20-amp continuous current rating of the connector.
