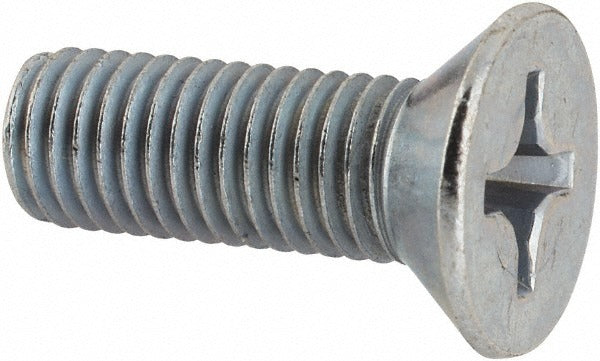

Value Collection 1512MPF 1/4-28 X 3/4 in Flat Head Phillips Screw

Product Description

The VALUE COLLECTION 1512MPF is a 1/4-28 unified fine thread machine screw with a flat head and Phillips drive. Built from steel with a zinc-plated finish, it meets ASME B18.6.3 and SAE J82 standards for dimensional and mechanical compliance. The flat head profile sits flush with the mating surface when fully driven, making it suitable for applications where a low-profile or countersunk finish is required. Overall length is 3/4 inches, measured from tip to the top of the head. This fastener is installed by maintenance technicians, electricians, plumbers, HVAC technicians, and general trade professionals across a wide range of assembly and equipment service tasks.

This screw is used in light- to medium-duty mechanical assemblies requiring a fine-thread 1/4-28 fastener. Typical applications include panel attachment, equipment enclosures, control box assembly, and general machine repair work. The zinc coating provides basic corrosion resistance suitable for indoor and sheltered installations. The Phillips drive accepts standard No. 2 Phillips bits and screwdrivers common in trade toolkits. This item is sold as a single package with a minimum order quantity of 50 units.

Key Features

• 1/4-28 unified fine thread for secure engagement in tapped holes
• Flat head profile seats flush in countersunk holes
• Phillips drive compatible with standard No. 2 Phillips bits
• Steel construction with zinc-plated finish for corrosion resistance
• Meets ASME B18.6.3 and SAE J82 dimensional and grade standards
• Overall length of 3/4 inches with no washer face

Compatibility

Designed for use in any application requiring a 1/4-28 fine thread flat head Phillips machine screw conforming to ASME B18.6.3 dimensions and SAE J82 material grade requirements.

Installation Notes

Install using a No. 2 Phillips screwdriver or power driver bit. Ensure the receiving hole is properly tapped to 1/4-28 UNF thread specification before driving the fastener. For countersunk applications, verify the countersink angle and diameter match the flat head profile to achieve a flush seating surface. Do not overtorque, as this can strip the Phillips drive recess or damage the mating thread.
