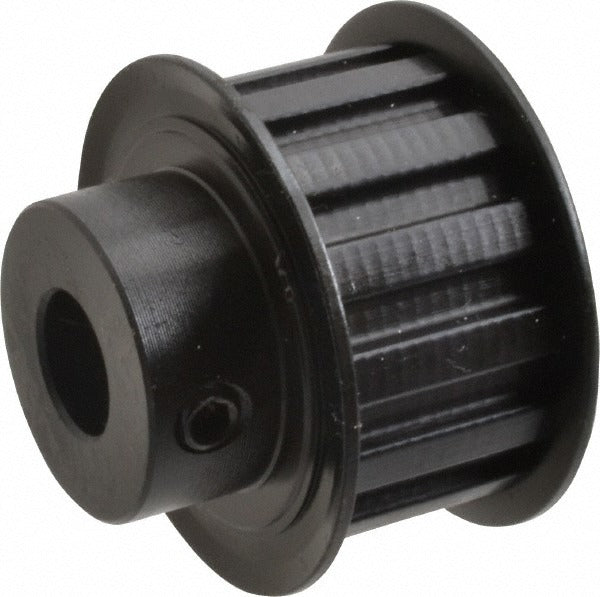

Value Collection 14L0756FSFB1/2 Timing Belt Pulley

Product Description

The VALUE COLLECTION 14L0756FSFB1/2 is a 14-tooth timing belt pulley designed for use with L-series synchronous drive belts. It features a 1/2-inch inside bore diameter and a 1.641-inch outside diameter, with a pitch diameter of 1.671 inches. The pulley is constructed from steel cast iron, providing durability under continuous rotational load. It is designed to maintain precise timing between drive components in mechanical power transmission systems. Licensed mechanics, millwrights, and industrial maintenance technicians typically source this pulley for conveyor systems, machine tools, and other synchronous drive applications requiring accurate belt-to-sprocket engagement.

This timing belt pulley is suited for mechanical drive assemblies that use L-series belts with a 3/4-inch belt width. It fits standard 1/2-inch bore shafts and is appropriate for light- to medium-duty industrial and commercial power transmission applications. Typical installation scenarios include conveyor lines, printing equipment, packaging machinery, and other systems where consistent timing and reduced slip are required. The 14-tooth configuration is commonly selected for applications demanding moderate reduction ratios with compact pulley sizing.

Key Features

• 14-tooth profile matched to L-series synchronous timing belts
• 1/2-inch inside bore diameter for standard shaft fitment
• 1.641-inch outside diameter and 1.671-inch pitch diameter
• 3/4-inch compatible belt width for L-belt drive systems
• Steel cast iron construction for strength and wear resistance
• Sold individually with a minimum order quantity of one

Compatibility

Designed for use with L-series synchronous timing belts with a 3/4-inch belt width. Compatible with standard 1/2-inch bore drive shafts in industrial power transmission assemblies.

Installation Notes

Installation is typically performed by a millwright or qualified mechanical technician. Disconnect and lock out all power to the drive system before removing or installing any pulley. Ensure the shaft bore and keyway dimensions match before pressing or securing the pulley, and verify belt tension and alignment per the drive system manufacturer's guidelines after installation. Refer to applicable ANSI and OSHA machinery safety standards for power transmission equipment service.
