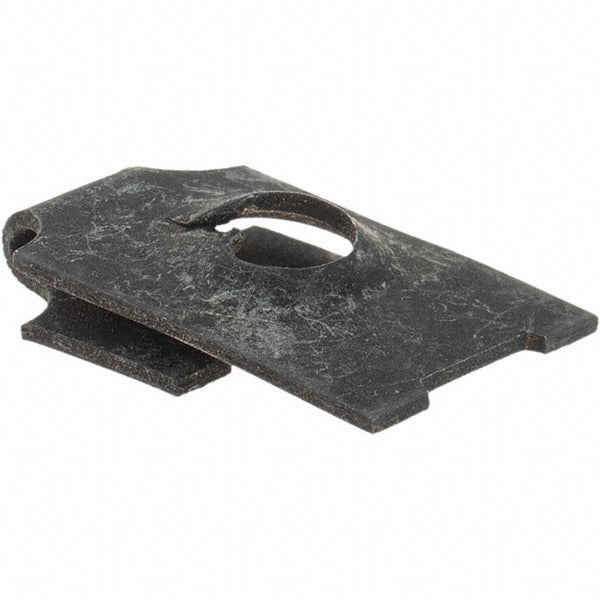

Value Collection 1450 Spring Steel J Nut 1/4 in 50 Pack

Product Description

The VALUE COLLECTION 1450 is a spring steel J nut designed to accept a 1/4 inch screw and clamp onto sheet metal or panel edges with a material thickness range of 0.0625 to 0.0938 inches. J nuts are push-on fasteners that snap onto a flange or edge, creating a threaded capture point without requiring a pre-tapped hole. They are widely used in HVAC cabinet assembly, electrical enclosures, and sheet metal fabrication where speed and accessibility drive fastener selection. The center-to-edge dimension is 17/32 inches. Each pack contains 50 pieces.

This J nut is suited for light-gauge sheet metal applications in residential and commercial settings. HVAC technicians use J nuts when reassembling unit cabinets, control box covers, and access panels. Electricians and sheet metal workers reach for them in panel enclosures and wireway assemblies. The spring steel construction provides reliable retention and consistent clamping force across the rated thickness range, making them appropriate for repetitive assembly work on production lines or field service calls.

Key Features

• Spring steel construction delivers consistent snap-on retention and clamping force
• Accepts 1/4 inch screw size for broad fastener compatibility
• Material thickness range of 0.0625 to 0.0938 inches suits light-gauge sheet metal flanges
• 17/32 inch center-to-edge dimension for consistent edge placement
• Push-on installation requires no pre-tapped hole or secondary operation
• Pack of 50 supports service stock and production use

Compatibility

Designed for use on sheet metal flanges and panel edges within the 0.0625 to 0.0938 inch material thickness range, accepting standard 1/4 inch fasteners in HVAC, electrical, and general sheet metal assembly applications.

Installation Notes

J nuts are typically installed by hand or with light plier pressure onto a clean, burr-free panel edge before driving the mating screw. Verify the panel thickness falls within the 0.0625 to 0.0938 inch range before installation to ensure proper retention. De-energize all electrical equipment and isolate any system before accessing internal panels or enclosures. Inspect each nut for deformation before reuse, as spring steel J nuts are generally intended for single-cycle installation.
