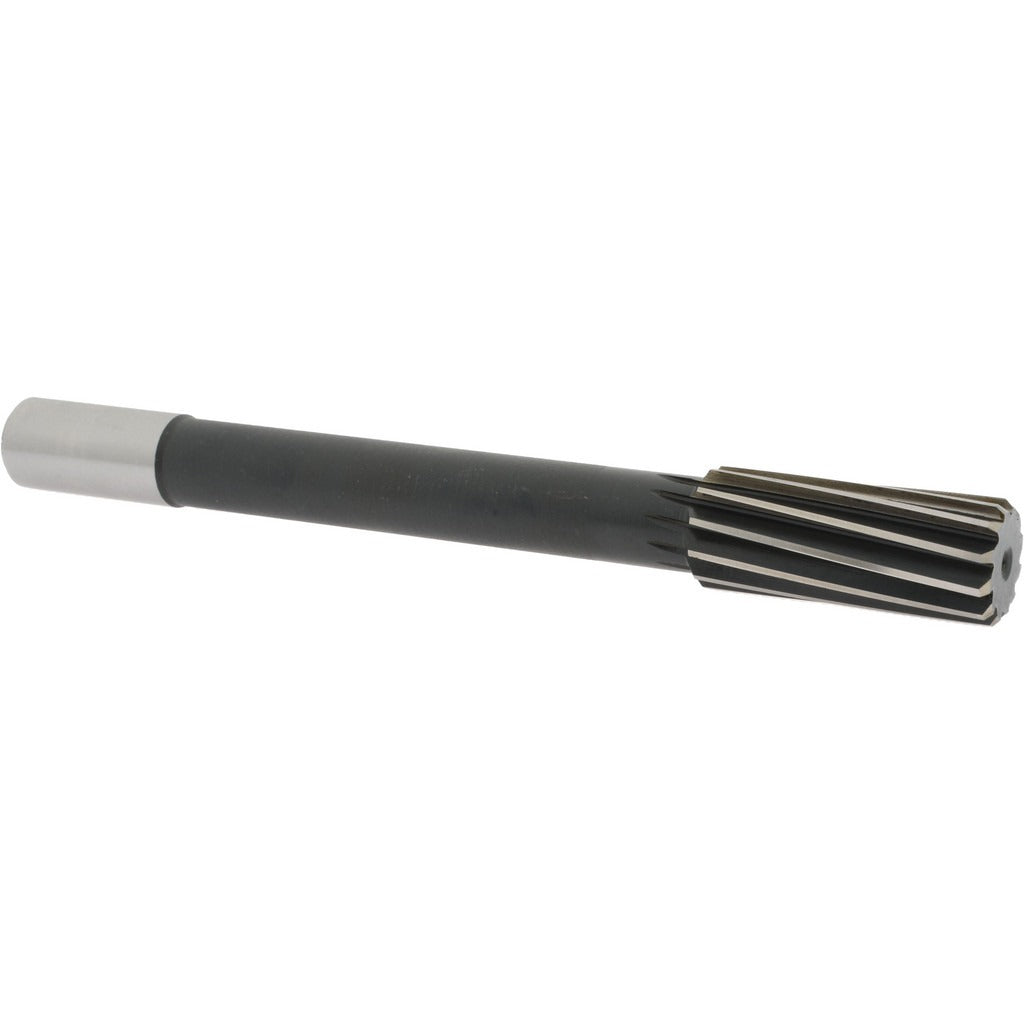

Value Collection 14442961031600S Chucking Reamer Hss

Product Description

The VALUE COLLECTION 14442961031600S is a chucking reamer designed for precision hole finishing in metal and similar materials. Built from high-speed steel (HSS), it delivers consistent sizing and surface finish in through-holes and blind holes where tight tolerances are required. The reamer measures 1.1875 inches (1-3/16 inches) in diameter with an overall length of 11 inches and a spiral flute length of 2-7/8 inches. The right-hand spiral flute geometry promotes smooth chip evacuation and reduces chatter during the cut. This tool is intended for use in drill presses, lathes, and CNC machining centers where a chucking-style straight-cylindrical shank is standard.

This reamer is suited for machine shop and production environments where holes bored or drilled slightly undersized need to be brought to a precise final diameter. A 1-3/16 inch reamer at this overall length is commonly used in applications involving larger bores in structural components, fixtures, and mechanical assemblies. The straight-cylindrical shank allows secure clamping in standard drill chucks and collet holders. Machinists, tool-and-die makers, and maintenance professionals in industrial and manufacturing settings are the typical end users.

Key Features

• 1.1875 inch (1-3/16 inch) reamer diameter for large-bore finish reaming
• HSS construction provides good wear resistance across a range of ferrous and non-ferrous materials
• Spiral right-hand flute design aids chip evacuation and produces a cleaner bore finish
• 11 inch overall length accommodates deeper setups and extended-reach applications
• 2-7/8 inch flute length provides adequate cutting engagement for typical through-hole depths
• Straight-cylindrical shank fits standard drill chucks and collet holders without adapters

Compatibility

Designed as a standard chucking reamer for use in drill presses, engine lathes, turret lathes, and CNC machining centers equipped with a chuck or collet capable of accepting a straight-cylindrical shank at this diameter range.

Installation Notes

Chucking reamers are installed and operated by machinists or toolroom personnel following standard machine shop practices. Secure the shank firmly in the chuck or collet before operation and verify runout with a dial indicator when tolerance is critical. Always apply appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Power down and lock out the machine before changing or inspecting the tool.
