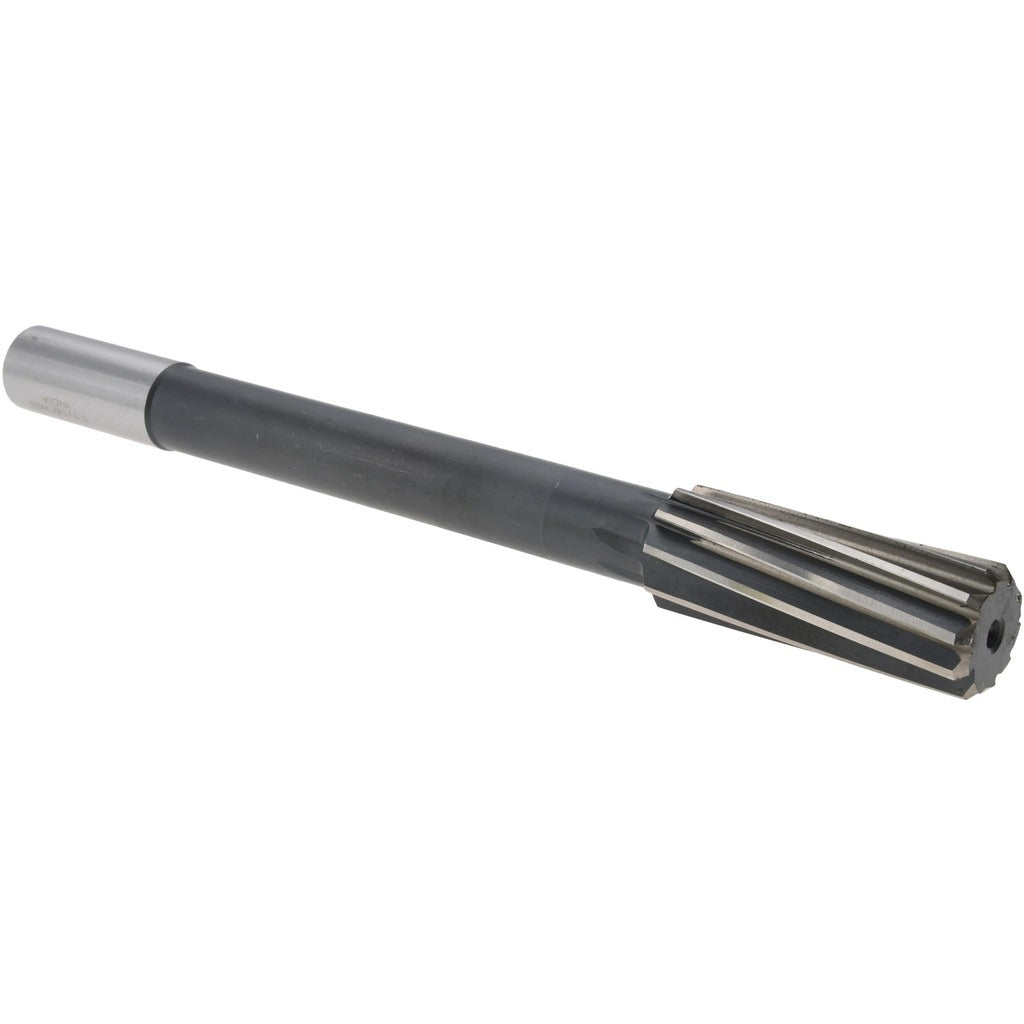

Value Collection 14442961011600S Chucking Reamer Hss

Product Description

The VALUE COLLECTION 14442961011600S is a straight-flute chucking reamer manufactured from high-speed steel (HSS) for precision hole finishing in machining and metalworking applications. It measures 1-1/16 inches (1.0625 inches decimal) in diameter with an overall length of 10-1/2 inches and a flute length of 2-3/4 inches. The bright, uncoated finish indicates an unmodified HSS surface suitable for general-purpose reaming. The right-hand spiral flute geometry and right-hand cutting direction work together to produce clean, accurate bores when used in a drill press, lathe, or CNC machining center. This tool is typically installed and operated by machinists, tool-and-die makers, or maintenance technicians performing precision bore work.

This chucking reamer is suited for finishing through-holes and blind bores in ferrous and non-ferrous metals in both production and maintenance shop environments. The straight-cylindrical shank allows direct chuck mounting in standard drill chucks, collets, or toolholders without additional adapters. At 1-1/16 inches diameter, it is appropriate for medium-to-large bore finishing work where tight tolerances and smooth surface finishes are required. It is not configured as an over/under size reamer or a dowel pin reamer, making it a standard nominal-diameter finishing tool.

Key Features

• 1-1/16 inch (1.0625 inch decimal) nominal reamer diameter for precise bore finishing
• High-speed steel (HSS) construction provides durability across general-purpose machining materials
• Spiral flute geometry with right-hand cut promotes smooth chip evacuation during reaming
• Straight-cylindrical shank fits standard drill chucks, collets, and toolholders directly
• Bright, uncoated finish — no surface treatment to account for in tolerance stack-up
• 10-1/2 inch overall length with 2-3/4 inch flute length accommodates moderate bore depth requirements

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, and machining centers equipped with a chuck or collet capable of accepting a straight-cylindrical shank at 1-1/16 inch diameter.

Installation Notes

Chucking reamers are installed by machinists or maintenance technicians using appropriate chuck or collet toolholding. Always ensure the machine spindle and workpiece are properly secured before operation, and confirm the reamer shank is fully seated and tightened in the chuck or collet before starting the cut. Pre-drill or bore the hole close to final size before reaming — a reamer is a finishing tool, not a material-removal tool. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish.
