Value Collection 144429610116000 Chucking Reamer Hss

Product Description

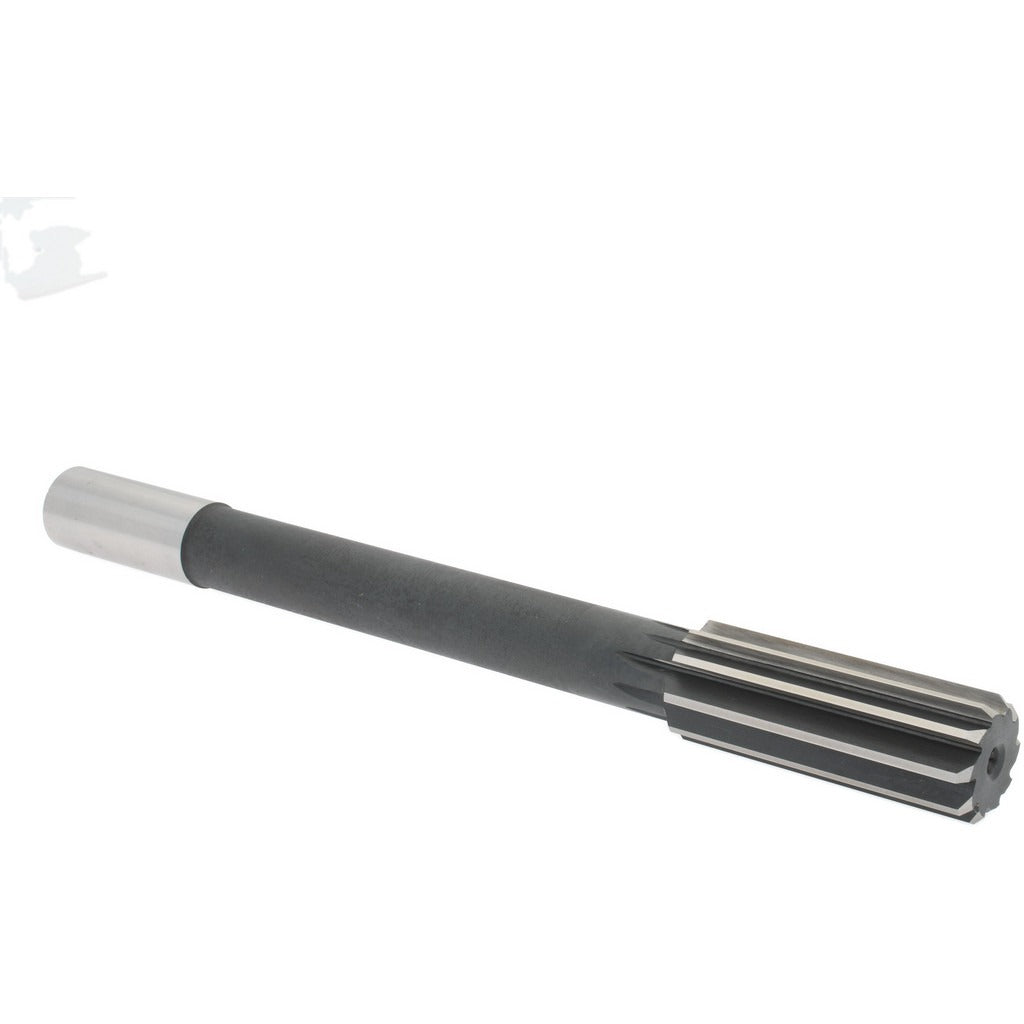

The VALUE COLLECTION 144429610116000 is a straight-flute chucking reamer designed for precision hole finishing in metalworking applications. Machined from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers consistent bore sizing in materials where controlled material removal and surface finish are required. The straight-cylindrical shank seats securely in standard drill press or lathe chucks. At 1.0625 inches in diameter with an overall length of 10-1/2 inches and a 2-3/4 inch flute length, it is suited for through-hole and shallow blind-hole reaming in production and maintenance machining environments.

This chucking reamer is used in machine shop, toolroom, and industrial maintenance settings wherever a 1-1/16 inch finished bore is required. Right-hand cutting action makes it compatible with conventional clockwise spindle rotation on lathes, drill presses, and CNC machining centers. The straight flute geometry performs reliably in short-chipping materials. It is typically installed by machinists and toolroom technicians working to close bore tolerances on ferrous and non-ferrous workpieces.

Key Features

• 1.0625 inch (1-1/16 inch) reamer diameter for precise bore finishing
• High-speed steel (HSS) construction provides hardness and wear resistance for general machining
• Straight flute design suited for short-chipping materials and through-hole applications
• Bright, uncoated finish — ready for use as-supplied or with cutting fluid
• Straight-cylindrical shank for direct chuck mounting without adapters
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed as an OEM-style replacement or direct-use chucking reamer for machine tools equipped with a chuck capable of accepting a straight-cylindrical shank at 1-1/16 inch diameter, including drill presses, engine lathes, and machining centers.

Installation Notes

Secure the straight-cylindrical shank firmly in a drill chuck or collet before use and verify runout is within acceptable limits for the required bore tolerance. Apply cutting fluid appropriate to the workpiece material to extend tool life and improve surface finish. Never run a reamer in reverse, as reverse rotation will damage the cutting edges. This tool should be handled and operated by qualified machinists familiar with safe machine tool practices.
