Value Collection 144429606164000 Chucking Reamer Hss

Product Description

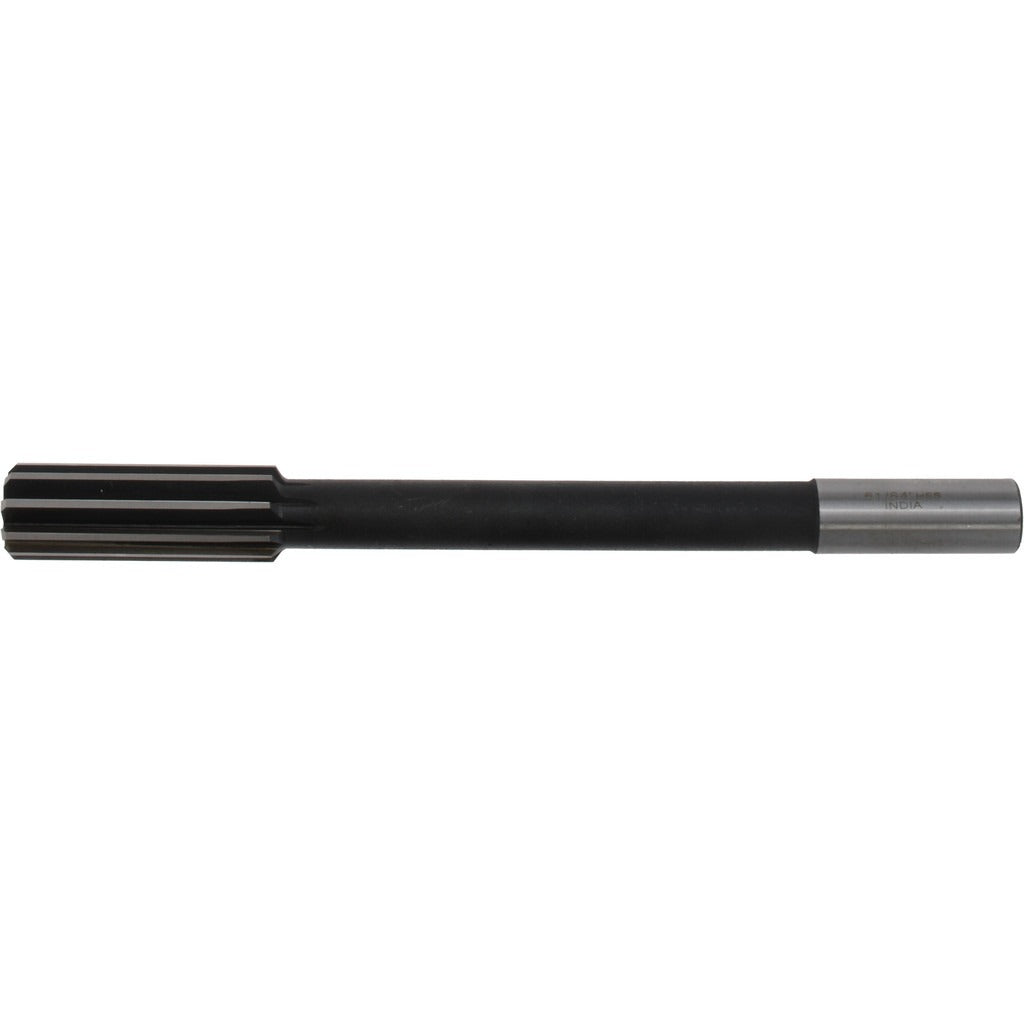

The VALUE COLLECTION 144429606164000 is a straight-flute chucking reamer designed to finish-ream drilled or bored holes to a precise diameter. Built from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers accurate sizing in ferrous and non-ferrous materials. It measures 0.9531 inches (61/64 inch) in diameter, with an overall length of 10 inches and a flute length of 2-5/8 inches. The straight-cylindrical shank seats securely in a drill chuck or collet holder. Right-hand cutting action makes it compatible with standard machine spindle rotation. Machinists and toolroom technicians reach for this style of reamer when a drilled hole requires tight-tolerance finishing before assembly or press-fit insertion.

This chucking reamer is suited for use in drill presses, lathes, milling machines, and CNC machining centers where a floating reamer holder or rigid setup is available. It is appropriate for through-holes and blind holes in general machining, maintenance repair, and toolroom applications. The 61/64-inch diameter is commonly used when reaming holes that will accept close-tolerance pins, bushings, or shafts. Straight flutes perform well in short-chipping materials and provide easy chip clearance in many common shop metals.

Key Features

• 61/64 inch (0.9531 inch) reamer diameter for precise hole finishing
• High-speed steel (HSS) construction resists heat and wear during cutting
• Bright, uncoated finish suitable for general-purpose machining applications
• Straight flute geometry provides clean cutting in short-chipping materials
• Straight-cylindrical shank fits standard drill chucks and collet systems
• Right-hand cutting direction matches standard machine spindle rotation

Compatibility

Designed as a general-purpose chucking reamer for use in drill presses, lathes, milling machines, and machining centers equipped with a drill chuck or collet capable of accepting a straight-cylindrical shank in the 61/64 inch diameter class.

Installation Notes

Chucking reamers should be installed by a qualified machinist. Always power down and lock out the machine spindle before loading or removing the tool from the chuck or collet. Use the recommended cutting speed and feed rate for the workpiece material and reamer diameter — running too fast or feeding too aggressively will shorten tool life and degrade hole finish. Apply appropriate cutting fluid to extend tool life and improve surface finish inside the reamed hole.
