Value Collection 144429605610000 Chucking Reamer Hss

Product Description

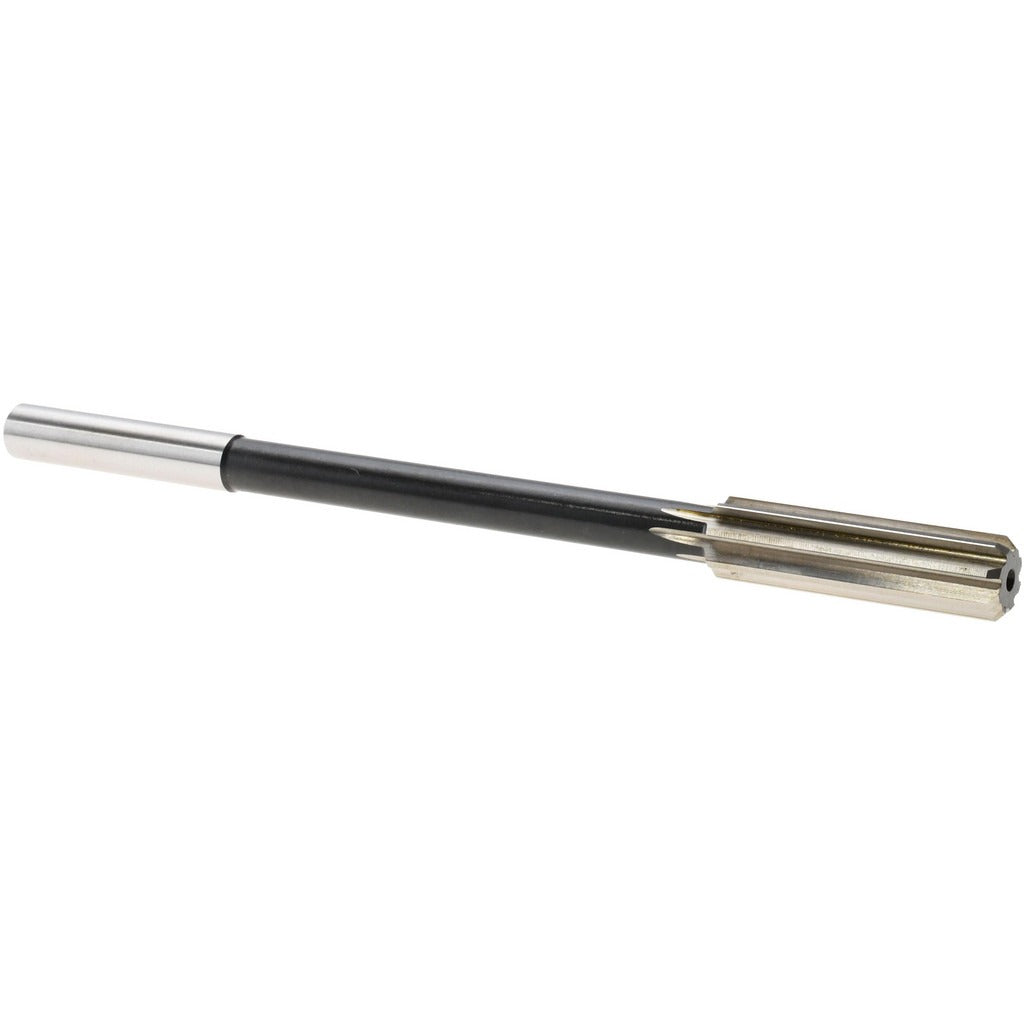

The VALUE COLLECTION 144429605610000 is a straight-flute chucking reamer designed to bring bored or drilled holes to a precise finished diameter. Built from high-speed steel (HSS), it delivers consistent performance in production and maintenance environments where tight tolerances are required. The reamer measures 0.5610 inches in diameter and features eight straight flutes, which promote smooth cutting action and clean hole finishes in a wide range of ferrous and non-ferrous workpiece materials. It mounts via a straight-cylindrical shank for compatibility with standard drill chucks and collet holders. Machinists, tool and die makers, and maintenance technicians are the typical end users.

This chucking reamer is suited for machine reaming applications on drill presses, lathes, and milling machines where the tool is held in a rotating spindle and fed axially into a pre-drilled or bored hole. It falls within the 0.5000 to 0.6999 inch reamer diameter range and is appropriate for general-purpose material removal where bore diameter accuracy and surface finish quality are the primary objectives. It is sold as a single unit and is not configured as an over- or under-size reamer.

Key Features

• 0.5610 inch finished bore diameter for precision hole sizing
• 8 straight flutes for smooth cutting and easy chip evacuation
• HSS construction for durability across a broad range of workpiece materials
• Straight-cylindrical shank fits standard drill chucks and collet systems
• Standard size reamer — not an over- or under-size configuration

Compatibility

Designed as a general-purpose chucking reamer compatible with machine spindles and tool holders accepting a straight-cylindrical shank in the 0.5000 to 0.6999 inch diameter class.

Installation Notes

Installation is performed by machinists or maintenance technicians. Secure the straight-cylindrical shank firmly in a drill chuck or collet holder before operation, and ensure the pre-drilled or bored hole is sized appropriately to leave only the intended reaming stock. Always power down and lock out the spindle before changing or inspecting the tool. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish.
